Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 05:58 AM
21 1089_21 1088 _03252019_231515.mp4
- Date
- 03/25/2019
- W/O
- 755939
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00784
- PipeID
- P16149
- Time
- 10:58 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5840
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- CLAREMONT
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755939_TV21055_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 1089
- Downstream MH
- 21 1088
- Dir. of Survey
- Downstream
- Length Surveyed
- 166.3 ft.
- Total Length
- 166.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

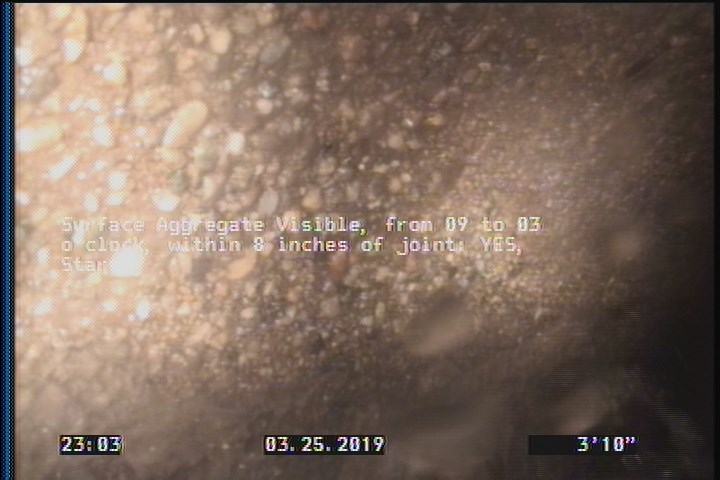

3.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

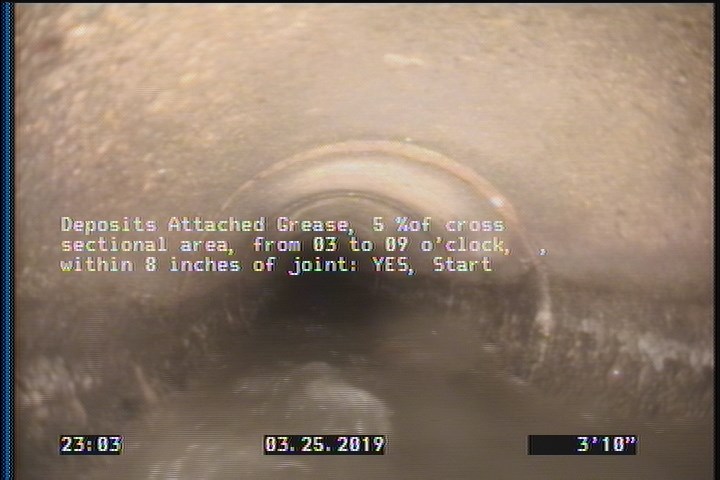

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

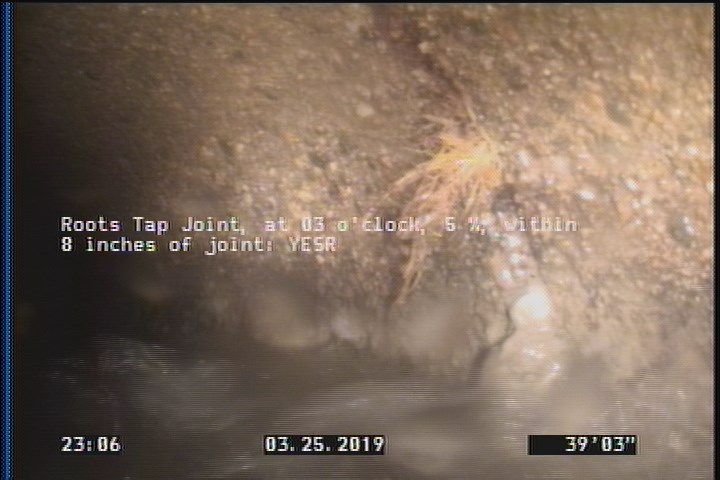

39.2 ft. - Roots Tap Joint, at 03 o'clock, 5 %, within 8 inches of joint: YESR
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 39.2 | RTJ | — |
| 165.4 | SAV | — |
| 0 | AMH | 21 1089 |
| 61.3 | TFC | — |
| 97.8 | TFC | — |
| 3.9 | SAV | — |
| 154.7 | TFC | — |
| 89.8 | TF | — |
| 12.5 | TFC | — |
| 0 | MWM | — |
| 166.3 | AMH | 21 1088 |
| 3.9 | DAGS | — |
| 165.4 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC366073
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-25T22:58:06-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
