Wastewater/Activity/PacpInspection/1.0Mar 25, 2019, 10:54 AM
21 0770_21 0769_03252019_040744.mp4
- Date
- 03/25/2019
- W/O
- 755771
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00773
- PipeID
- P15883
- Time
- 3:54 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6493
- Sewer Name
- 21 LA VERNE TRUNK, SECTION 3
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755771_TV21053_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0770
- Downstream MH
- 21 0769
- Dir. of Survey
- Downstream
- Length Surveyed
- 252.1 ft.
- Total Length
- 252.1 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

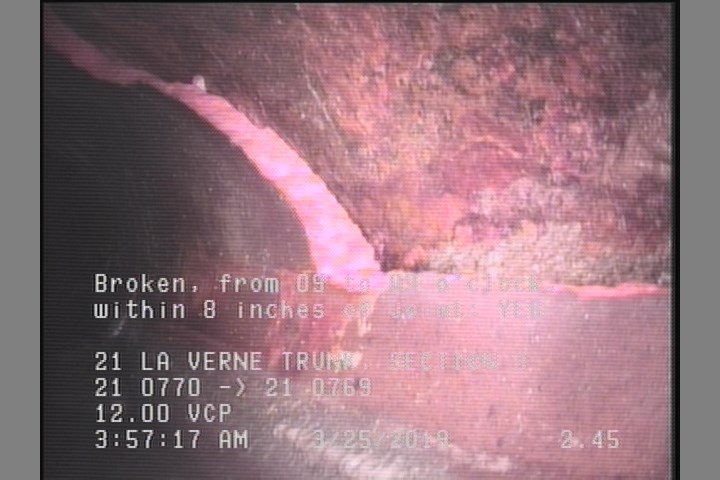

2.5 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES

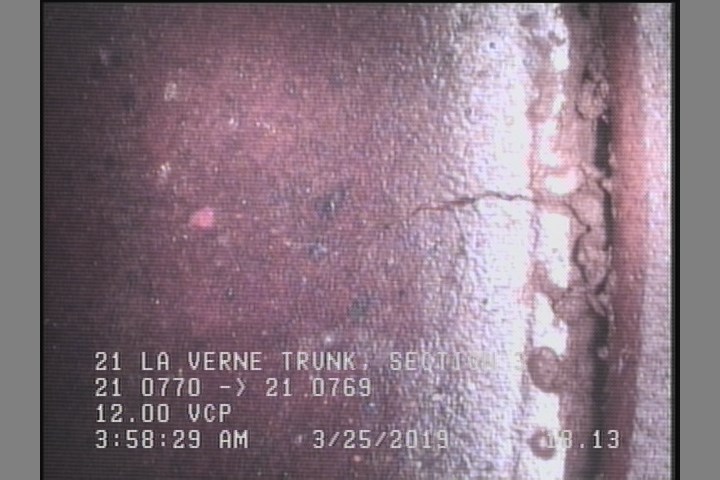

18.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

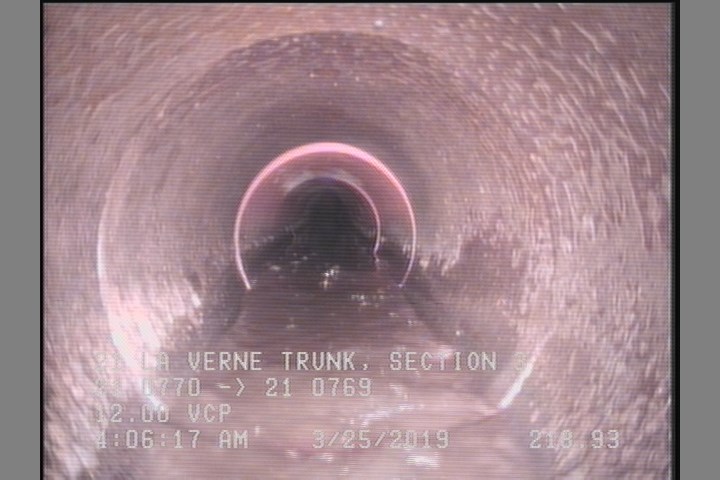

218.9 ft. - Water Level, Sag in pipe, 15 %of cross sectional area
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 252.1 | AMH | 21 0769 |
| 18.1 | CM | — |
| 218.9 | MWLS | — |
| 0 | MGO | CONNECTION IN MH 3 OCLOCK |
| 2.5 | B | — |
| 0 | AMH | 21 0770 |
Properties (5)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-25T03:54:19-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
