Wastewater/Activity/PacpInspection/1.0Feb 5, 2019, 10:02 AM
22 0291_22 0290_02052019_021158.mp4
- Date
- 02/05/2019
- W/O
- 745519
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16577
- Time
- 2:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6381
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745519_TV22014_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0291
- Downstream MH
- 22 0290
- Dir. of Survey
- Downstream
- Length Surveyed
- 92.6 ft.
- Total Length
- 92.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

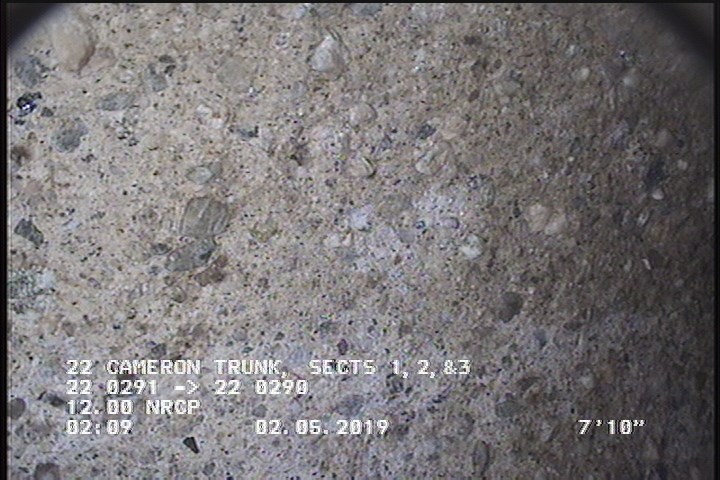

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

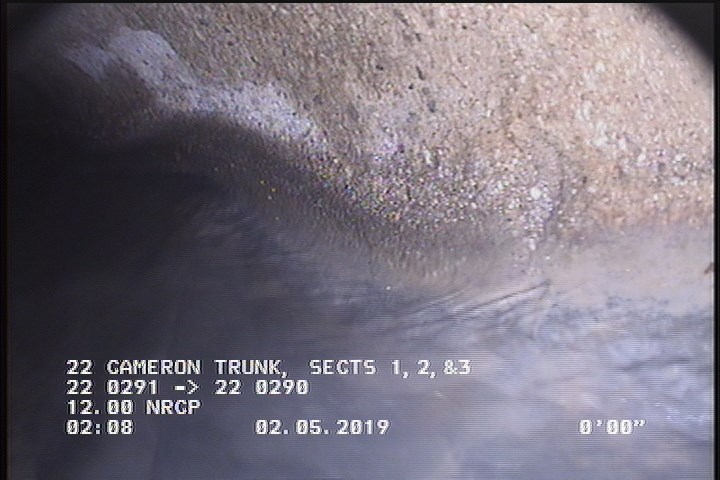

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 0 | MWL | — |
| 90 | DAGS | — |
| 0 | AMH | 22 0291 |
| 90 | SAP | — |
| 92.6 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 92.6 | AMH | 22 0290 |
| 90 | SSS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | SSS | — |
Properties (6)
- additional_info
- SC365693
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-05T02:02:52-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
