Wastewater/Activity/PacpInspection/1.0Feb 12, 2019, 07:14 AM
22 0278_22 0277 _02112019_232354.mp4
- Date
- 02/11/2019
- W/O
- 745519
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16564
- Time
- 11:14 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6390
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745519_TV22014_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0278
- Downstream MH
- 22 0277
- Dir. of Survey
- Downstream
- Length Surveyed
- 159.4 ft.
- Total Length
- 159.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E2D
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 62
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 212
Observation photos (4)

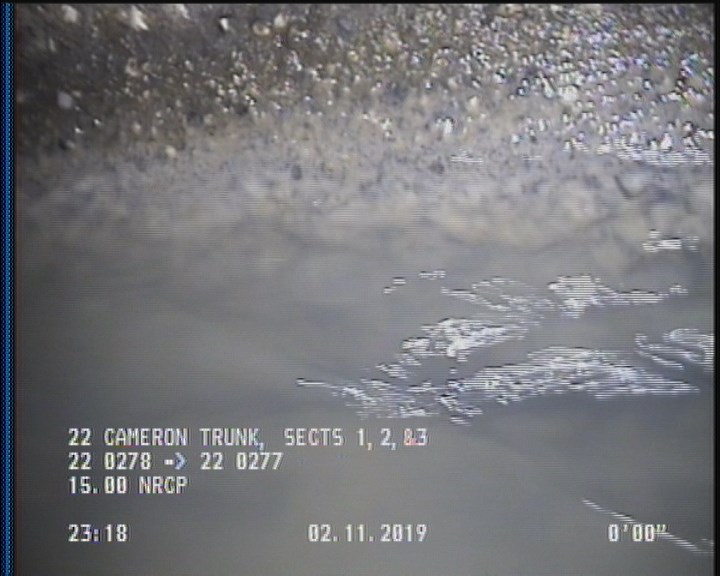

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

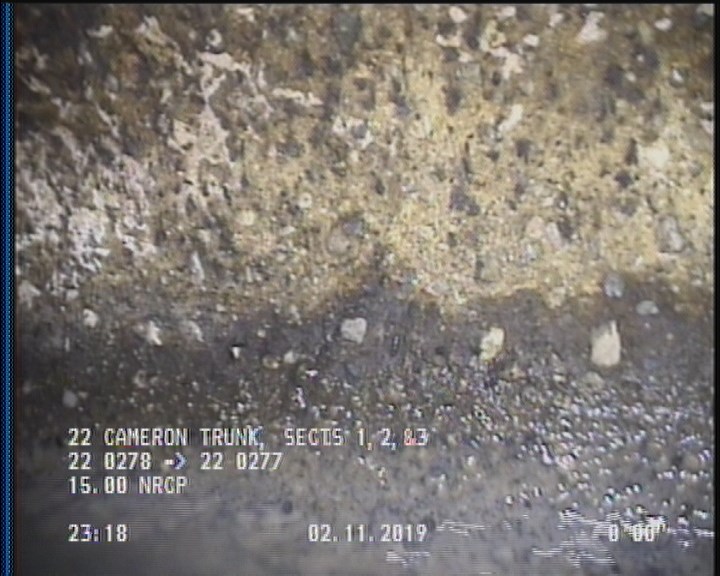

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

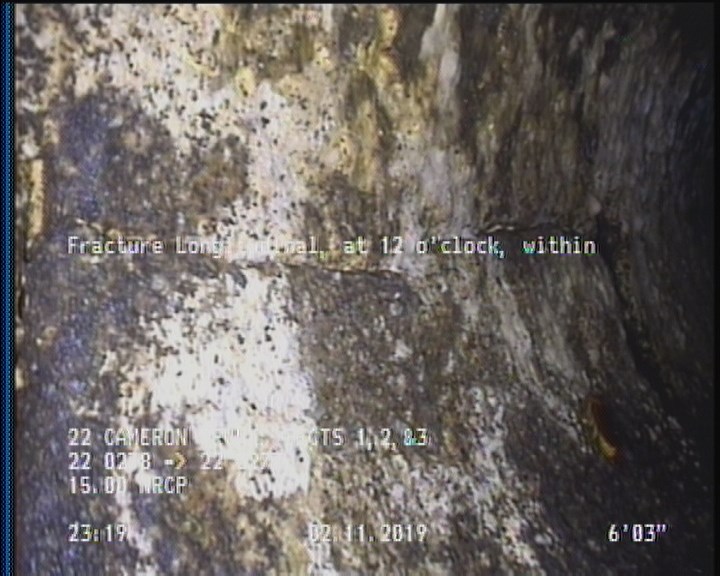

6.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

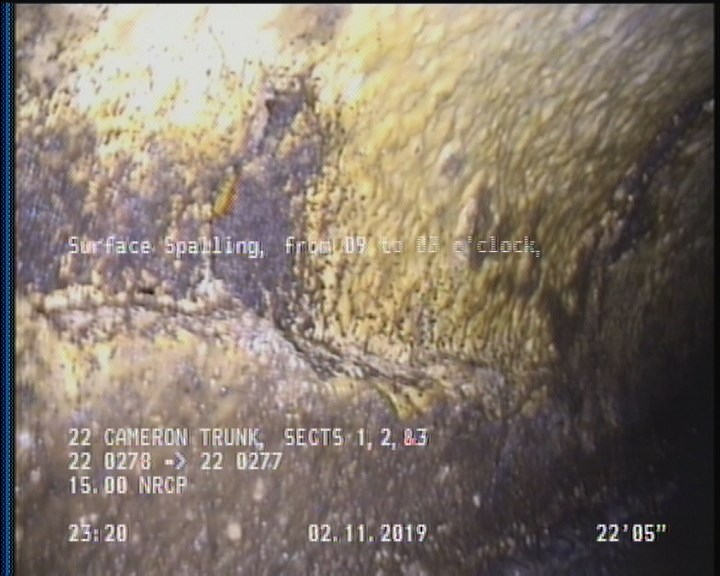

22.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 157.1 | SAP | — |
| 2 | DAGS | — |
| 0 | AMH | 22 0278 |
| 159.4 | AMH | 22 0277 |
| 22.4 | SSS | — |
| 0 | MWL | — |
| 29.4 | TFC | — |
| 157.1 | DAGS | — |
| 157.1 | SSS | — |
| 159.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | SAP | — |
| 6.3 | FL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365901
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-11T23:14:51-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
