Wastewater/Activity/PacpInspection/1.0Feb 8, 2019, 05:42 AM
22 0285_22 0284_02072019_215741.mp4
- Date
- 02/07/2019
- W/O
- 745519
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00793
- PipeID
- P16571
- Time
- 9:42 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6387
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745519_TV22014_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0285
- Downstream MH
- 22 0284
- Dir. of Survey
- Downstream
- Length Surveyed
- 260 ft.
- Total Length
- 260 ft.
- Structural Index
- 3
- Structural Quick
- 3I2I
- Structural Rating
- 255
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 102
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 357
Observation photos (3)

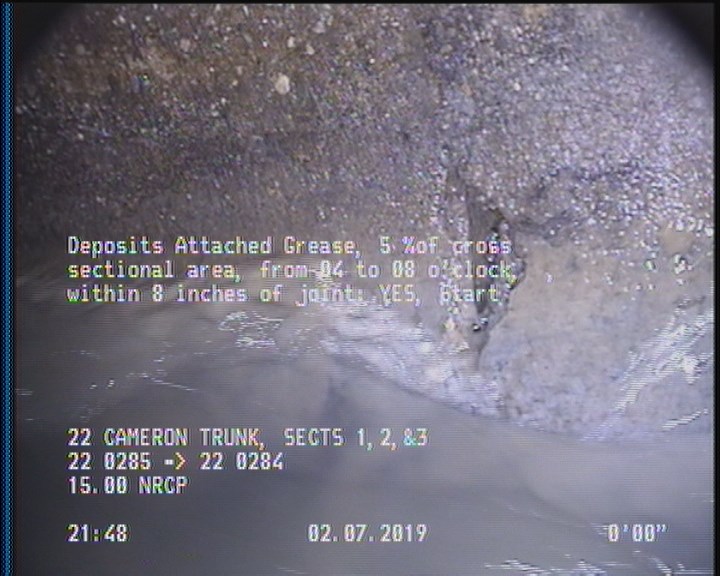

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

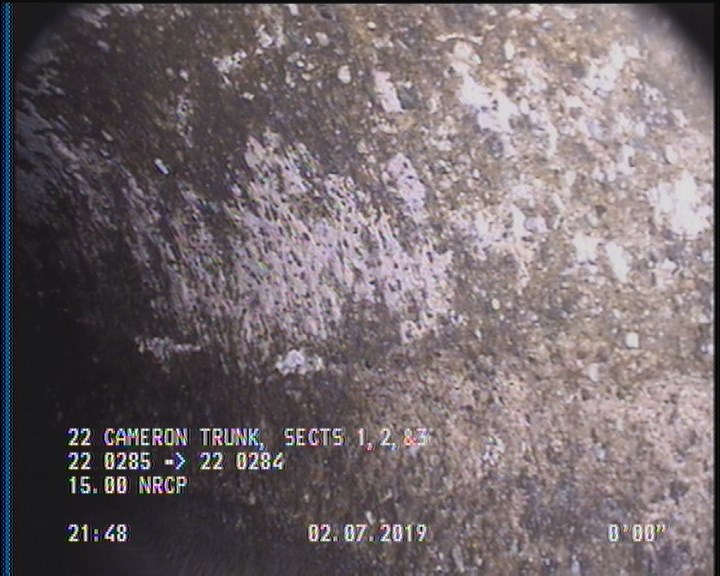

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

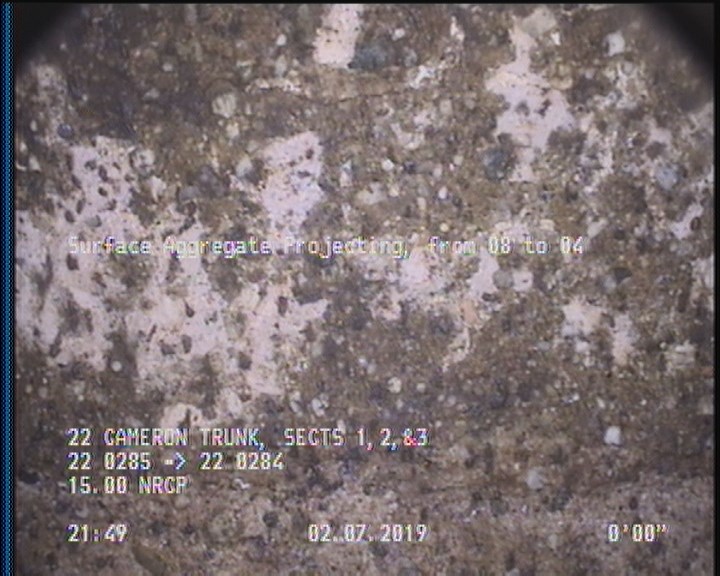

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 9.3 | TBA | — |
| 258 | SAP | — |
| 258 | DAGS | — |
| 0 | AMH | 22 0285 |
| 260 | AMH | 22 0284 |
| 206.9 | TFA | — |
| 122.4 | TFA | — |
| 0 | MWM | — |
| 146.2 | TFA | — |
| 53.4 | TFC | — |
| 231.2 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 0 | MWL | — |
| 258 | SSS | — |
| 2 | SSS | — |
| 7.8 | TFC | — |
| 40.7 | TFA | — |
| 190.9 | TFC | — |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC365698
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-07T21:42:57-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
