Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 08:14 AM

  • F 0097_F 0277 _01092019_002432.mp4

Date
01/09/2019
W/O
740022
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00039
PipeID
P20476
Time
12:14 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6317
Sewer Name
F JOINT OUTFALL F - UNIT 4
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
RFIR_WO_740022_TV02205_DEC2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
F 0097
Downstream MH
F 0277
Dir. of Survey
Downstream
Length Surveyed
87 ft.
Total Length
87 ft.
Structural Index
4
Structural Quick
5B3B
Structural Rating
113
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
113
Pipe schematic from manhole F 0097 to F 0277
MH: F 0097MH: F 0277downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - F 00970 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area8.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start22.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start87 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish87 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish87 ft. AMH - Downstream Manhole, Survey Ends - F 0277

Observation photos (2)

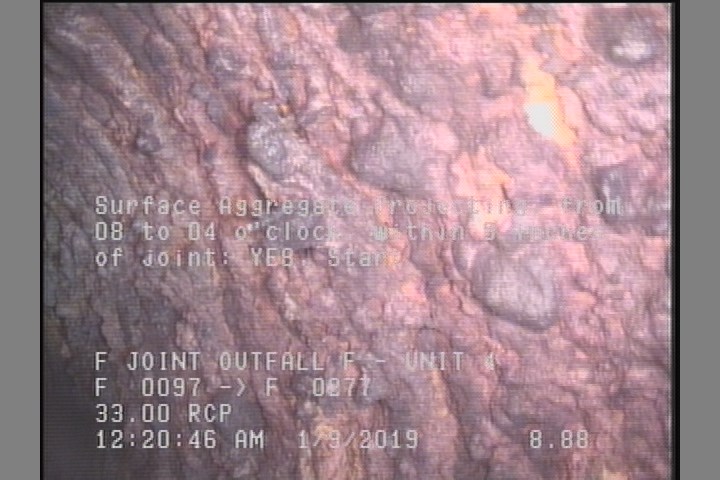

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

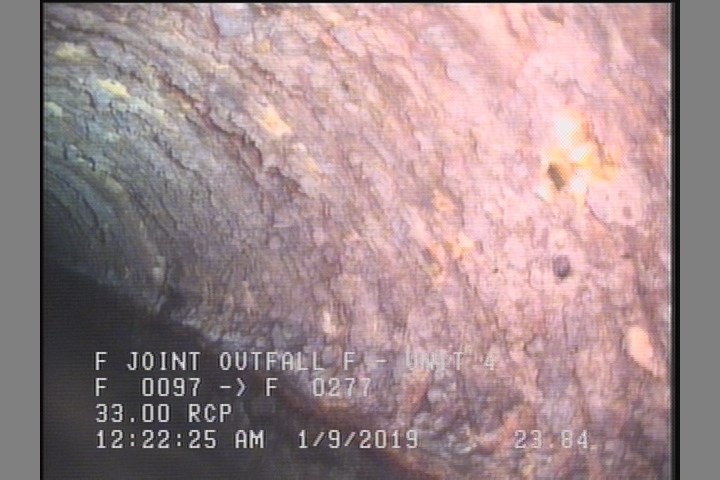

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    22.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P20476Work order 740022

Observations (9)

DistanceCodeObservation
87SAP—
87SRV—
0MGOCONNECTION AT MH 3 O'CLOCK
0AMHF 0097
0MWM—
22.5SRV—
8.9SAP—
0MWL—
87AMHF 0277

Properties (6)

additional_info
SC365751
custom_field_two
2
customer
LACSD
datetime
2019-01-09T00:14:32-08:00
documentation
PROPIPE
is_lateral_inspection
false
