Wastewater/Activity/PacpInspection/1.0Apr 5, 2019, 06:12 AM
15 0653_15 0652 _04042019_232609.mp4
- Date
- 04/04/2019
- W/O
- 761478
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00606
- PipeID
- P12925
- Time
- 11:12 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6448
- Sewer Name
- 15 GRAND AVENUE TRUNK
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_761478_TV15027_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0653
- Downstream MH
- 15 0652
- Dir. of Survey
- Downstream
- Length Surveyed
- 298.6 ft.
- Total Length
- 298.6 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 177
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 295
Observation photos (2)

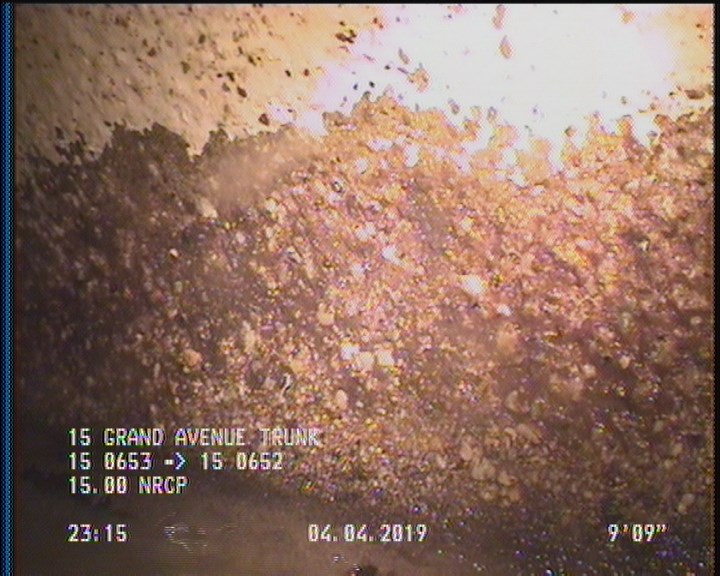

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

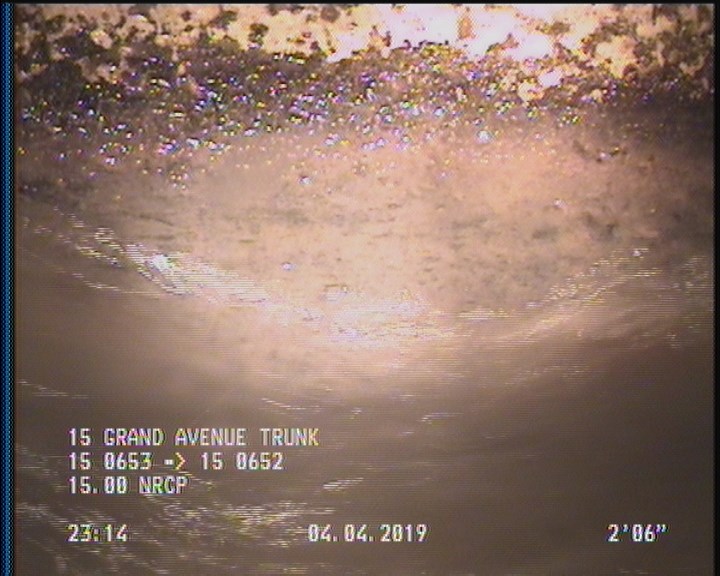

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 233.3 | TFA | — |
| 236.7 | TFA | — |
| 296.2 | SAP | — |
| 75.7 | TFA | — |
| 0 | MWM | — |
| 97.3 | TFC | — |
| 298.6 | AMH | 15 0652 |
| 188.4 | TFA | — |
| 0 | MWL | — |
| 296.2 | DAGS | — |
| 227 | TFA | — |
| 2 | SAP | — |
| 264.8 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 85.6 | TFC | — |
| 0 | AMH | 15 0653 |
| 157.4 | TFA | — |
| 2 | MGO | MAG COATING THROUGHOUT 70% |
Properties (6)
- additional_info
- SC366216
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-04T23:12:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
