Wastewater/Activity/PacpInspection/1.0Apr 8, 2019, 10:27 AM
15 0645_15 0644_04082019_034148.mp4
- Date
- 04/08/2019
- W/O
- 761478
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00606
- PipeID
- P12917
- Time
- 3:27 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6449
- Sewer Name
- 15 GRAND AVENUE TRUNK
- City
- SAN GABRIEL
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_761478_TV15027_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0645
- Downstream MH
- 15 0644
- Dir. of Survey
- Downstream
- Length Surveyed
- 362.5 ft.
- Total Length
- 362.5 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 216
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 360
Observation photos (2)

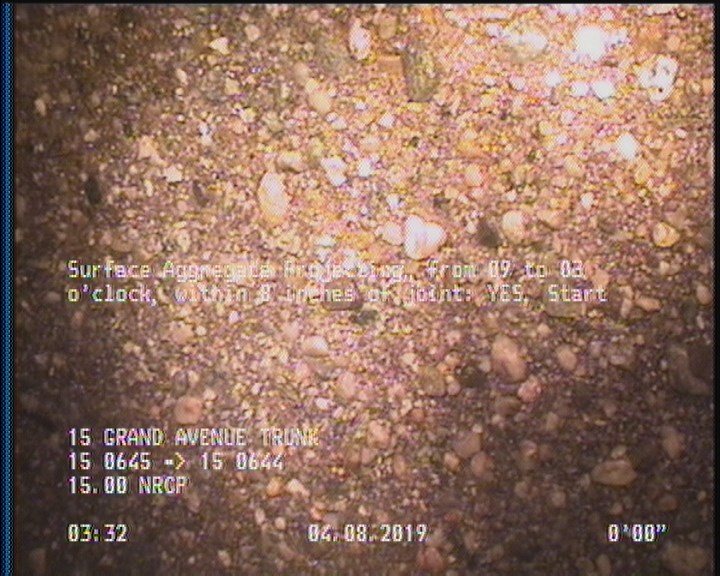

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

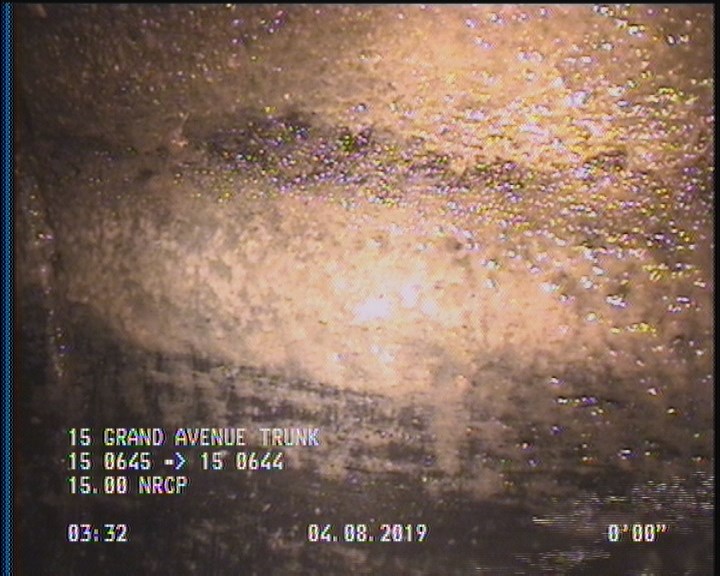

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 360.7 | DAGS | — |
| 334.5 | TFA | — |
| 347.2 | TF | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOCK |
| 0 | AMH | 15 0645 |
| 2 | SAP | — |
| 14.6 | MGO | MAG COATING THROUGHOUT 50% |
| 2 | DAGS | — |
| 0 | MWL | — |
| 131 | TFC | — |
| 360.7 | SAP | — |
| 0 | MWM | — |
| 362.5 | AMH | 15 0644 |
Properties (6)
- additional_info
- SC366217
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-08T03:27:12-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
