Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 8, 2019, 09:35 AM

  • 15 0650_15 0649 _04082019_024602.mp4

Date
04/08/2019
W/O
761478
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00606
PipeID
P12922
Time
2:35 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6449
Sewer Name
15 GRAND AVENUE TRUNK
City
SAN GABRIEL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
10
Purpose
Routine Assessment
Project
WO_761478_TV15027_APR2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0649
Downstream MH
15 0650
Dir. of Survey
Upstream
Length Surveyed
241.3 ft.
Total Length
241.3 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
144
O&M Index
2
O&M Quick
2I00
O&M Rating
96
Overall Index
3
Overall Quick
—
Overall Rating
240
Pipe schematic from manhole 15 0649 to 15 0650
MH: 15 0649MH: 15 0650upstream0 ft. AMH - Upstream Manhole, Survey Ends - 15 06500 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK1.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish38.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"47.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"48.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"56.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"71.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"74.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"119.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"164.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"185.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"239.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start239.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start241.3 ft. MWL - Water Level, 10 %of cross sectional area241.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK241.3 ft. MWM - Water Mark, 30 %of cross sectional area241.3 ft. AMH - Downstream Manhole, Survey Begins - 14 0649

Observation photos (2)

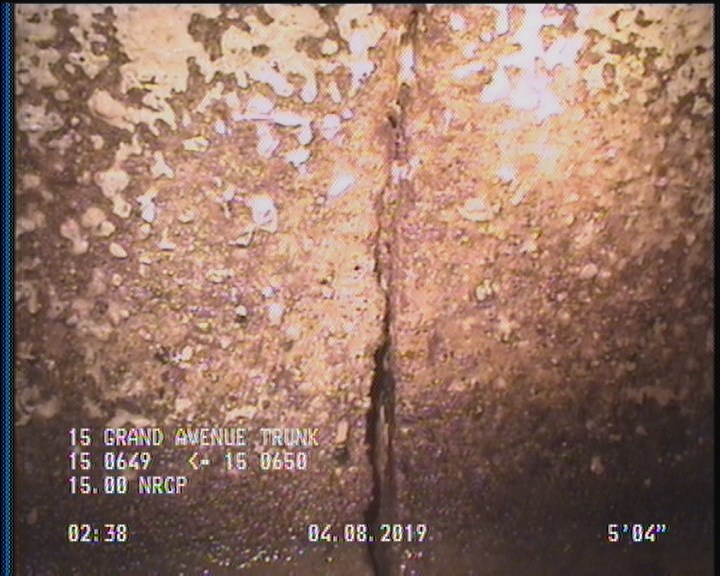

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

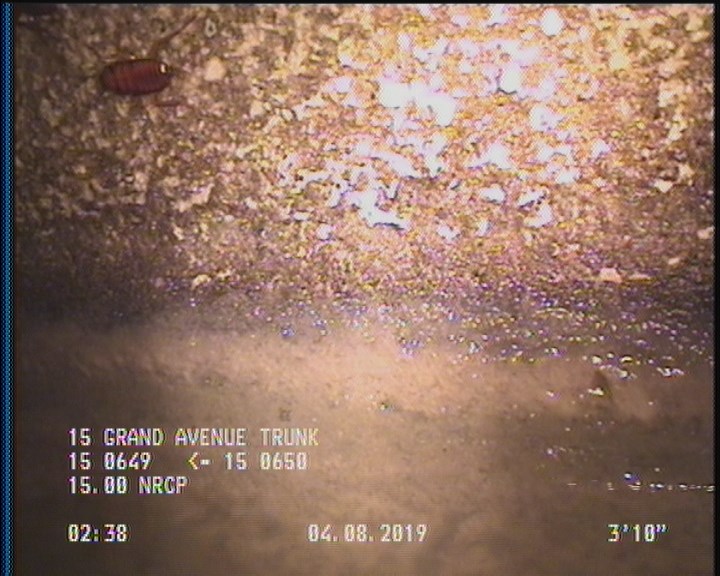

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12922Work order 761478

Observations (20)

DistanceCodeObservation
2SAP—
55.6TFA—
133.8TFC—
166.6TFC—
203TBA—
0MWL—
121.8TFC—
76.6TFA—
241.3AMH15 0650
2DAGS—
240.2DAGS—
193.6TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
169.8TBA—
0MWM—
0AMH14 0649
193TBA—
241.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK
240.2SAP—
185TBA—

Properties (6)

additional_info
SC366217
custom_field_two
2
customer
LACSD
datetime
2019-04-08T02:35:47-07:00
documentation
PRO PIPE
is_lateral_inspection
false
