Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 10:57 AM
21 0387_21 0386 _03062019_040441.mp4
- Date
- 03/06/2019
- W/O
- 752349
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00757
- PipeID
- P15593
- Time
- 2:57 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5821
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_752349_TV21069_FEB2019
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0387
- Downstream MH
- 21 0386
- Dir. of Survey
- Downstream
- Length Surveyed
- 9.5 ft.
- Total Length
- 9.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

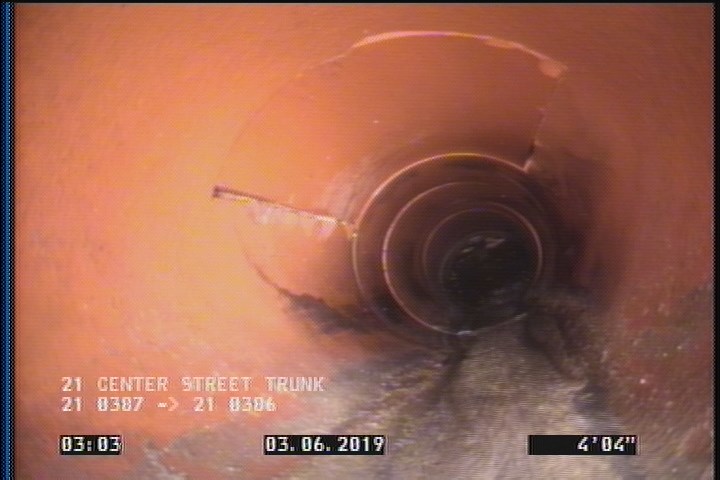

4.4 ft. - Repair Patch, from 10 to 02 o'clock, within 8 inches of joint: YES - VCP

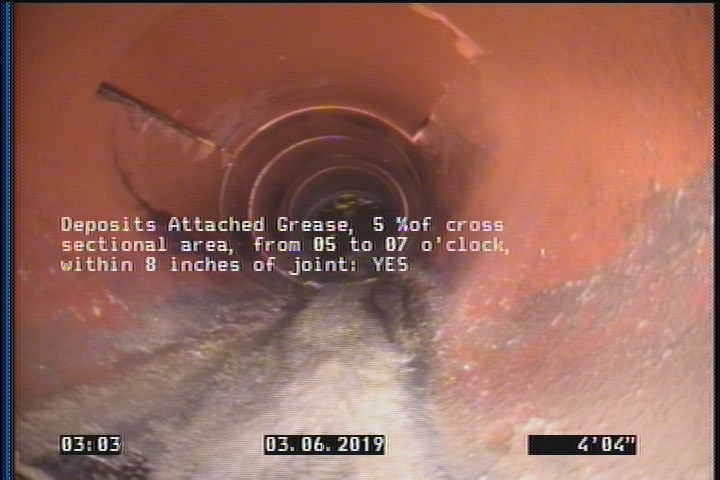

4.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 4.4 | RPP | VCP |
| 0 | MGO | WEST BARREL |
| 9.5 | MSA | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 0 | MWL | — |
| 0 | AMH | 21 0387 |
| 4.4 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC366397
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-06T02:57:35-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
