Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 09:34 AM
21 0388_21 0387 _03062019_023917.mp4
- Date
- 03/06/2019
- W/O
- 752349
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00757
- PipeID
- P15594
- Time
- 1:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5821
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_752349_TV21069_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0388
- Downstream MH
- 21 0387
- Dir. of Survey
- Downstream
- Length Surveyed
- 17.9 ft.
- Total Length
- 17.9 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

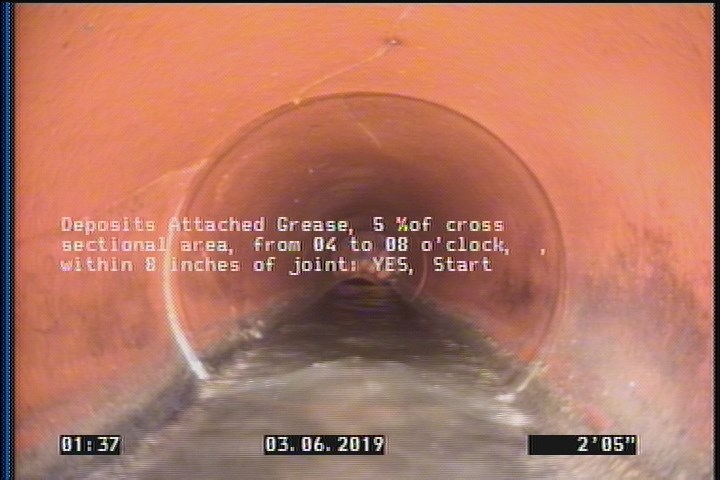

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

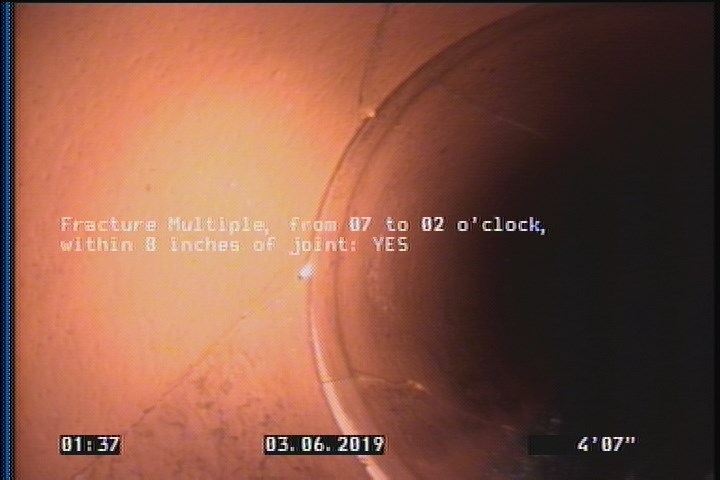

4.6 ft. - Fracture Multiple, from 07 to 02 o'clock, within 8 inches of joint: YES

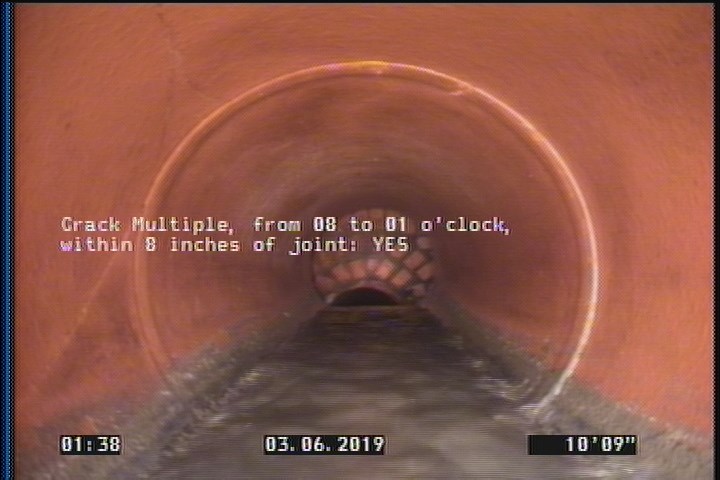

10.7 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 17.9 | AMH | 21 0387 |
| 0 | MWL | — |
| 10.7 | CM | — |
| 2.3 | DAGS | — |
| 0 | AMH | 21 0388 |
| 0 | MGO | CONNECTIONS AT BOTH 3 AND 9 O' CLOCK AT MH |
| 4.6 | FM | — |
| 0 | MWM | — |
| 16.6 | DAGS | — |
Properties (6)
- additional_info
- SC366397
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-06T01:34:35-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
