Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 05:53 AM
21 0386_H 0995 _03052019_230732.mp4
- Date
- 03/05/2019
- W/O
- 752349
- Weather
- Light Rain
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00757
- PipeID
- P15592
- Time
- 9:53 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5821
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_752349_TV21069_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 21 0386
- Downstream MH
- H 0995
- Dir. of Survey
- Downstream
- Length Surveyed
- 111.9 ft.
- Total Length
- 111.9 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

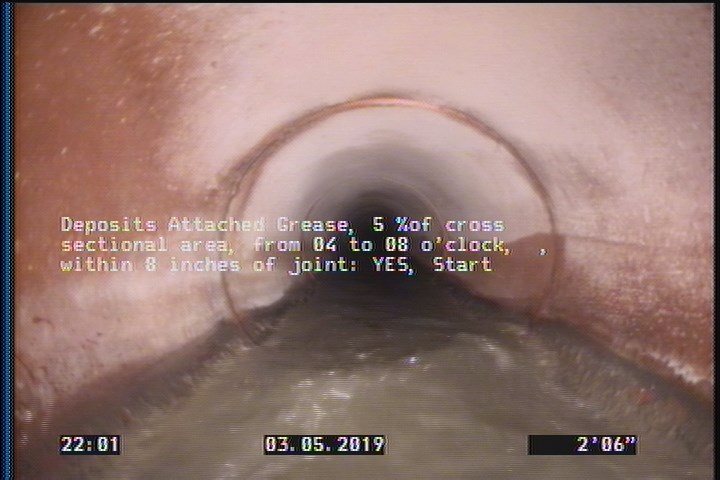

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

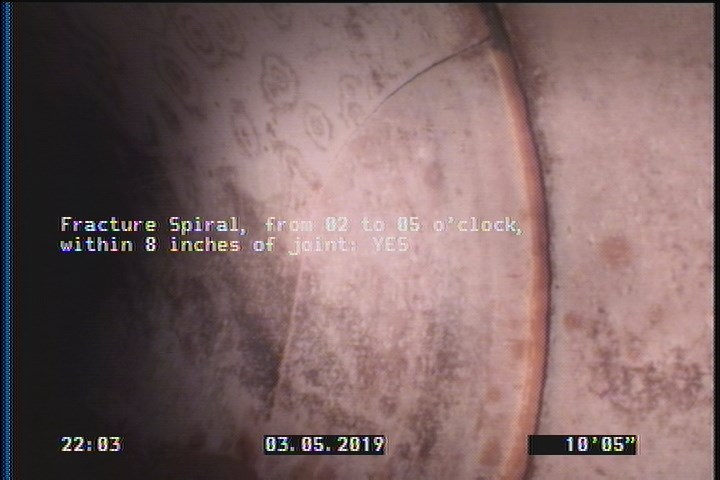

10.4 ft. - Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

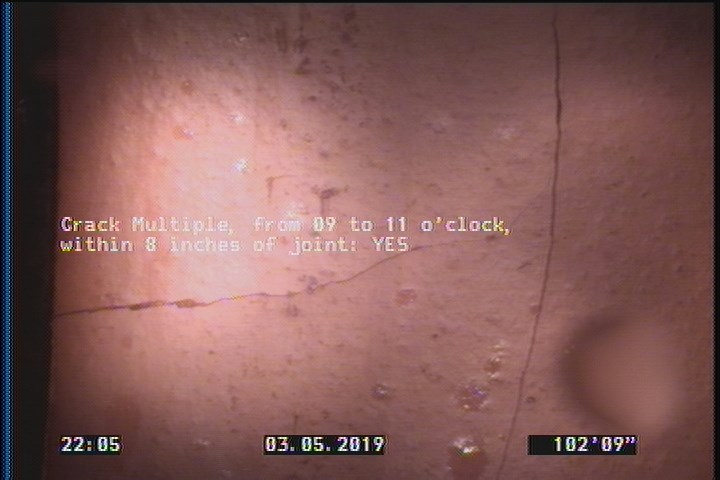

102.7 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

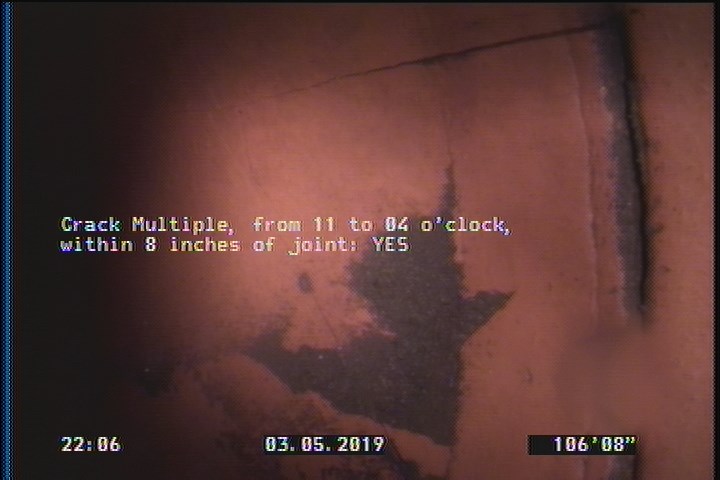

106.7 ft. - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 111.2 | DAGS | — |
| 2.5 | DAGS | — |
| 0 | AMH | 21 0386 |
| 106.7 | CM | — |
| 102.7 | CM | — |
| 10.4 | FS | — |
| 0 | MWL | — |
| 111.9 | AMH | H 0995 |
Properties (6)
- additional_info
- SC366397
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-05T21:53:37-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
