Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 07:44 AM
21 0395_21 0394 _03062019_005635.mp4
- Date
- 03/05/2019
- W/O
- 752349
- Weather
- Light Rain
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00757
- PipeID
- P15601
- Time
- 11:44 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5821
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_752349_TV21069_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0395
- Downstream MH
- 21 0394
- Dir. of Survey
- Downstream
- Length Surveyed
- 352.6 ft.
- Total Length
- 352.6 ft.
- Structural Index
- 4
- Structural Quick
- 5143
- Structural Rating
- 17
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 19
Observation photos (5)

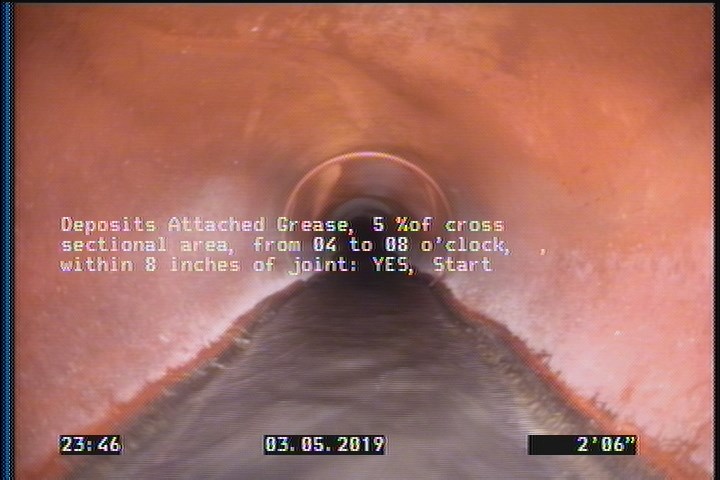

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

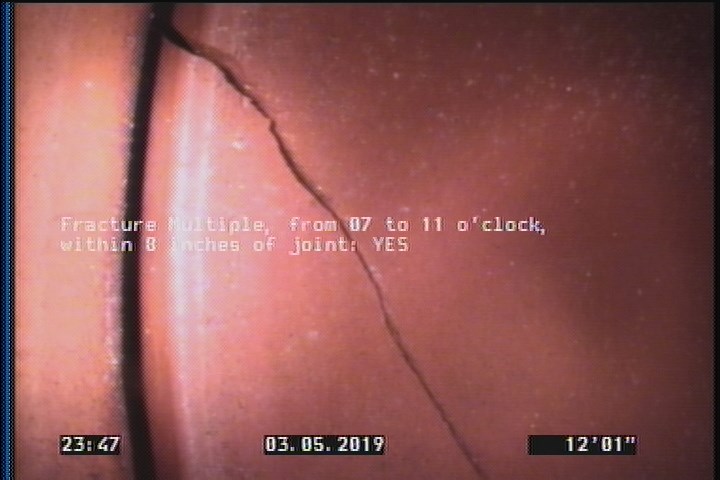

12.1 ft. - Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

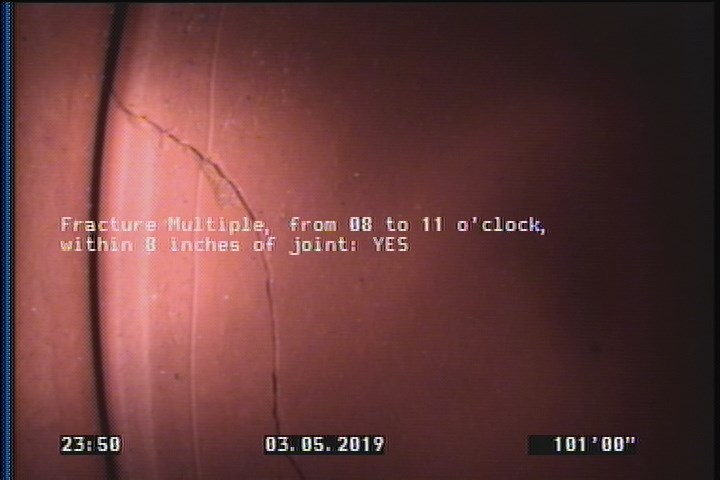

101 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

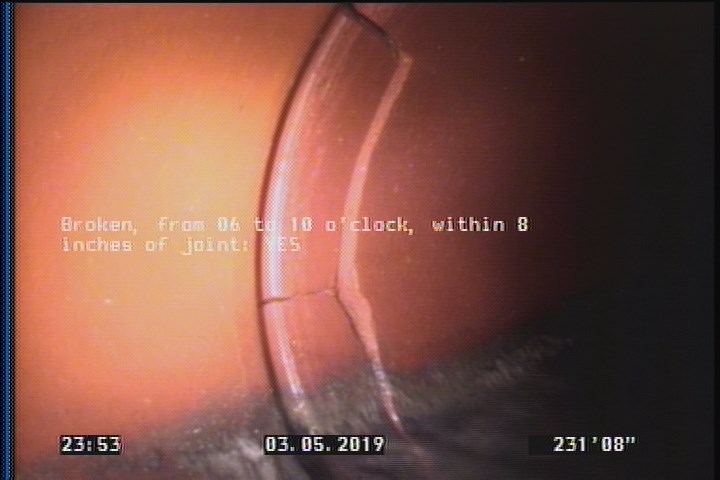

231.7 ft. - Broken, from 06 to 10 o'clock, within 8 inches of joint: YES

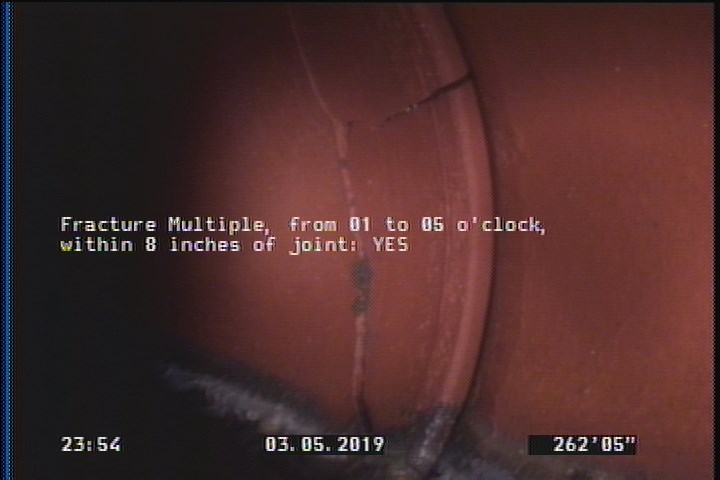

262.5 ft. - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 84.4 | TFC | — |
| 231.7 | B | — |
| 352.6 | AMH | 21 0394 |
| 350.4 | DAGS | — |
| 0 | AMH | 21 0395 |
| 101 | FM | — |
| 2.5 | DAGS | — |
| 324.3 | TFC | — |
| 0 | MWL | — |
| 12.1 | FM | — |
| 262.5 | FM | — |
Properties (6)
- additional_info
- SC366397
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-05T23:44:08-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
