Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 10:03 AM

  • 21 0392_21 0391 _03062019_031742.mp4

Date
03/06/2019
W/O
752349
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00757
PipeID
P15598
Time
2:03 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5821
Sewer Name
21 CENTER STREET TRUNK
City
CITY OF INDUSTRY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
35
Purpose
Routine Assessment
Project
WO_752349_TV21069_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
21 0391
Downstream MH
21 0392
Dir. of Survey
Upstream
Length Surveyed
318.9 ft.
Total Length
318.9 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 21 0391 to 21 0392
MH: 21 0391MH: 21 0392upstream0 ft. AMH - Upstream Manhole, Survey Ends - 21 03922.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish29.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO55.6 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES117.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.2 ft. RFJ - Roots Fine Joint, from 03 to 08 o'clock, within 8 inches of joint: YESR196.1 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR216.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES315.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start318.9 ft. MWL - Water Level, 10 %of cross sectional area318.9 ft. MWM - Water Mark, 15 %of cross sectional area318.9 ft. AMH - Downstream Manhole, Survey Begins - 21 0391318.9 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH

Observation photos (6)

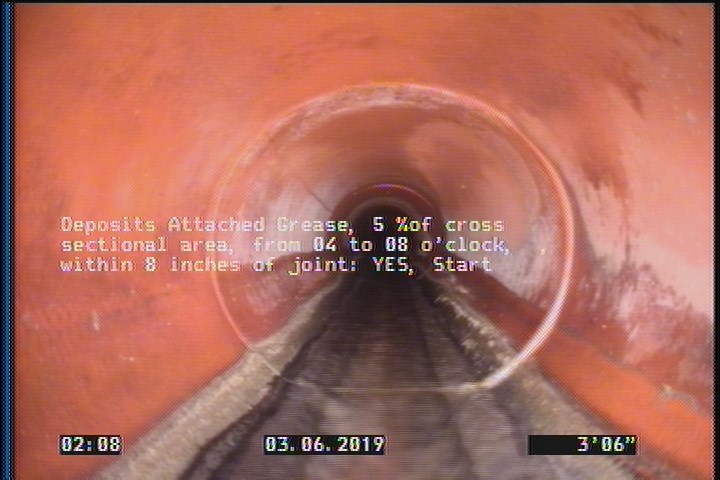

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

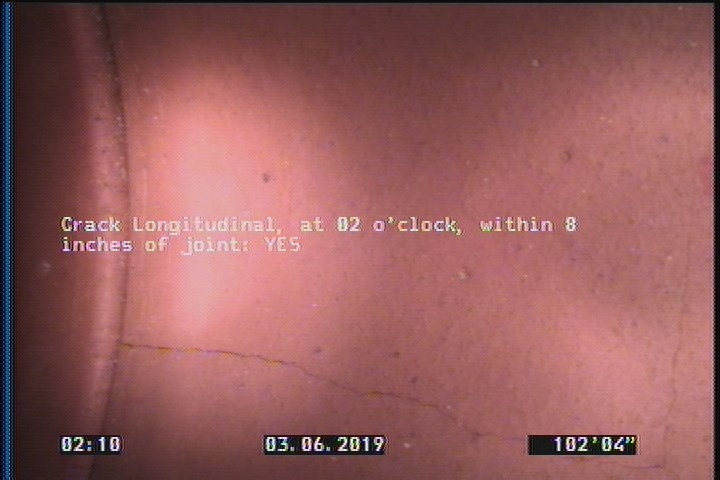

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    102.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

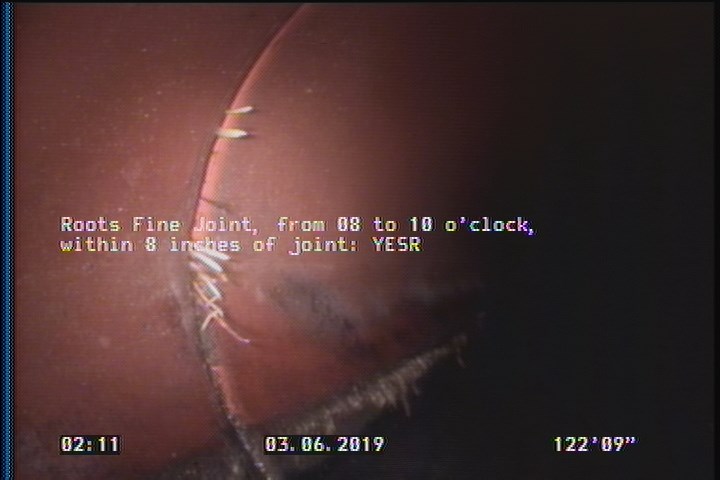

  • Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR

    122.8 ft. - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR

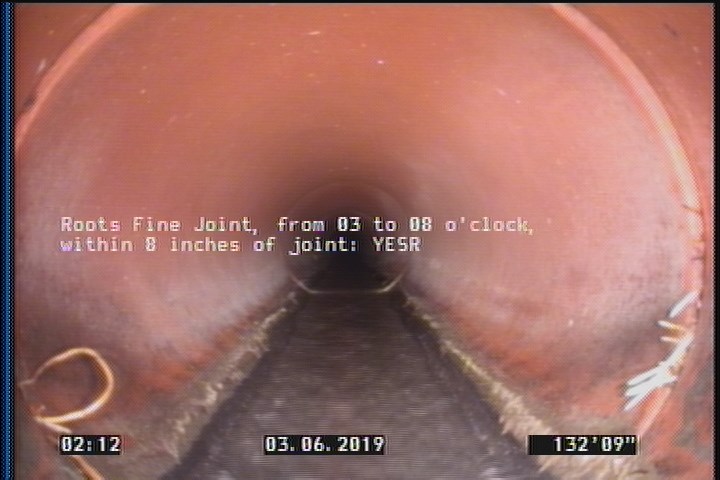

  • Roots Fine Joint, from 03 to 08 o'clock, within 8 inches of joint: YESR

    132.7 ft. - Roots Fine Joint, from 03 to 08 o'clock, within 8 inches of joint: YESR

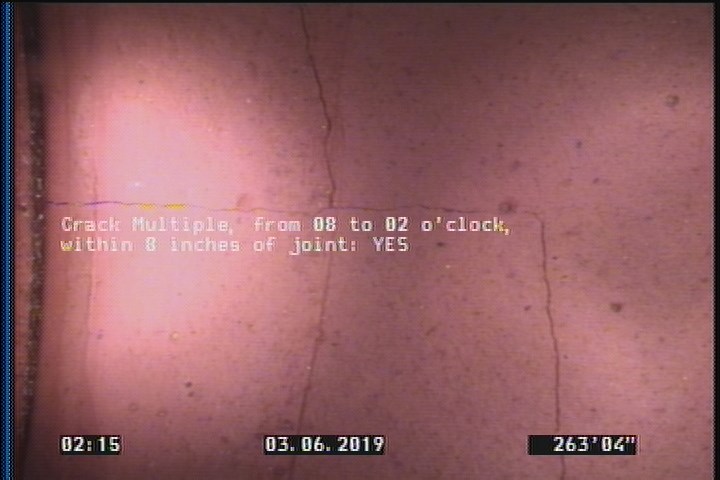

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    263.3 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

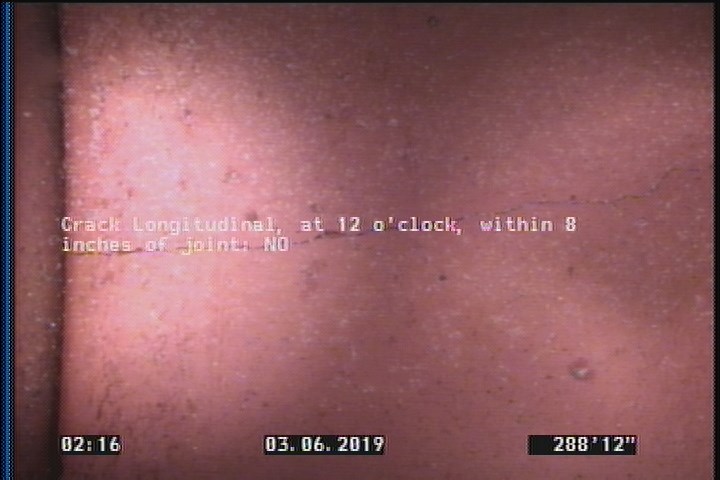

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

    289 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

All inspections of P15598Work order 752349

Observations (13)

DistanceCodeObservation
201.2TFC—
122.8RFJ—
289CL—
132.7RFJ—
0MWL—
263.3CM—
3.5DAGS—
316.4DAGS—
102.3CL—
0MWM—
0AMH21 0391
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
318.9AMH21 0392

Properties (6)

additional_info
SC366397
custom_field_two
4
customer
LACSD
datetime
2019-03-06T02:03:41-08:00
documentation
PROPIPE
is_lateral_inspection
false
