Wastewater/Activity/PacpInspection/1.0Jan 29, 2019, 07:51 AM
20 0021_20 0020_01282019_234012.mp4
- Date
- 01/28/2019
- W/O
- 745462
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00734
- PipeID
- P18943
- Time
- 11:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6369
- Sewer Name
- 20 AVENUE "P-8" TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_745462_TV20017_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 20 0021
- Downstream MH
- 20 0020
- Dir. of Survey
- Downstream
- Length Surveyed
- 445.8 ft.
- Total Length
- 445.8 ft.
- Structural Index
- 3
- Structural Quick
- 3Q2Q
- Structural Rating
- 443
- O&M Index
- 3
- O&M Quick
- 413C
- O&M Rating
- 71
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 514
Observation photos (3)

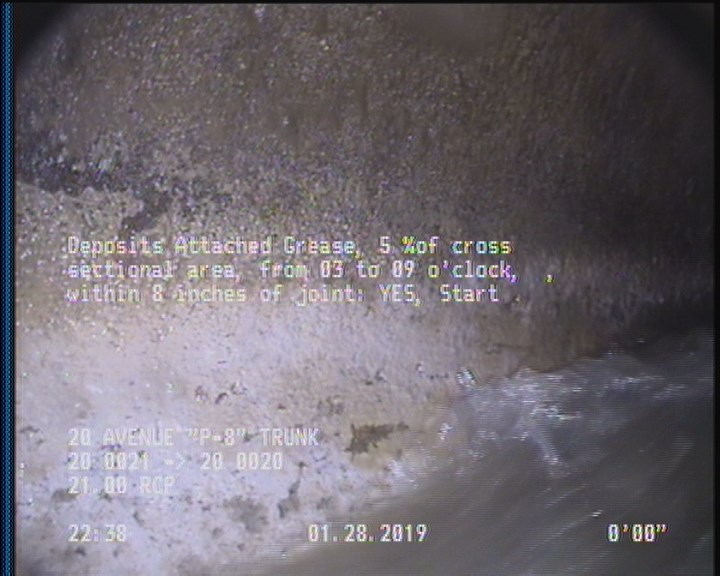

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

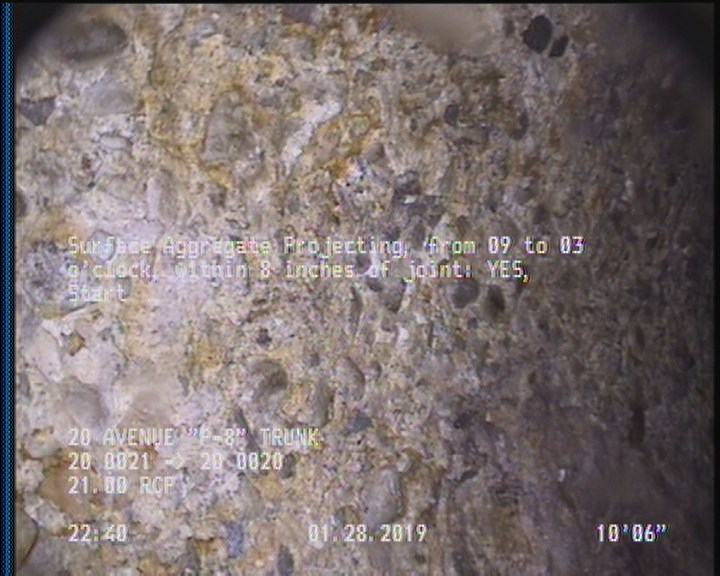

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

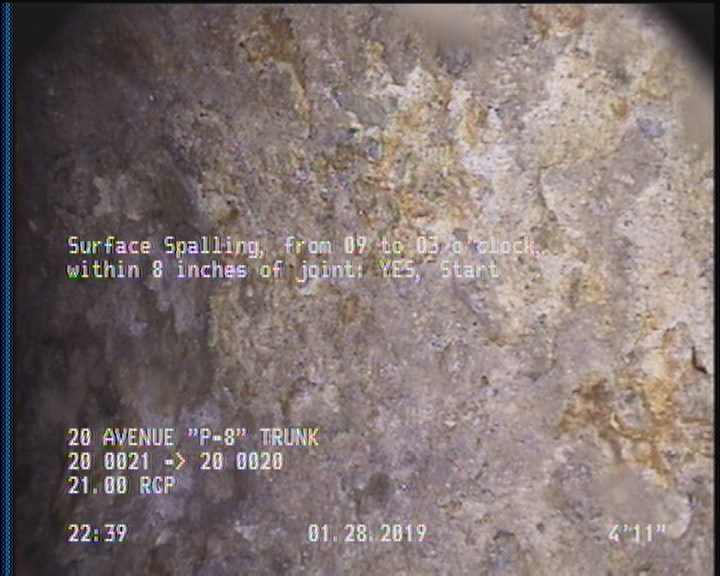

4.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 445.8 | SAP | — |
| 302.8 | TFC | — |
| 445.8 | DSZ | — |
| 0 | AMH | 20 0021 |
| 445.8 | AMH | 20 0020 |
| 445.8 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 4.9 | SSS | — |
| 150.8 | TFC | — |
| 445.8 | SSS | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 339.1 | DSZ | DEBRIS |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC365686
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-28T23:51:16-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
