Wastewater/Activity/PacpInspection/1.0Mar 4, 2019, 09:18 AM
05 0726_05 0725_03042019_023735.mp4
- Date
- 03/04/2019
- W/O
- 750840
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00521
- PipeID
- P05949
- Time
- 1:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6413
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750840_TV05333_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 0726
- Downstream MH
- 05 0725
- Dir. of Survey
- Downstream
- Length Surveyed
- 376.3 ft.
- Total Length
- 376.3 ft.
- Structural Index
- 4
- Structural Quick
- 4N00
- Structural Rating
- 292
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 148
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 440
Observation photos (3)

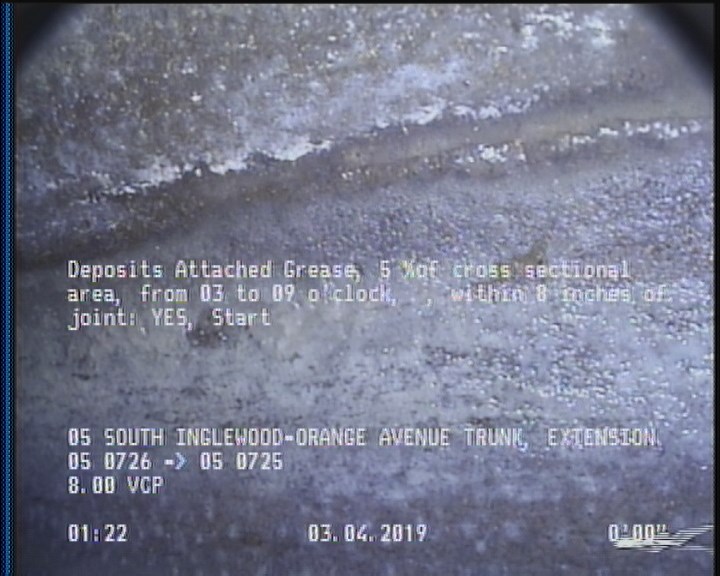

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

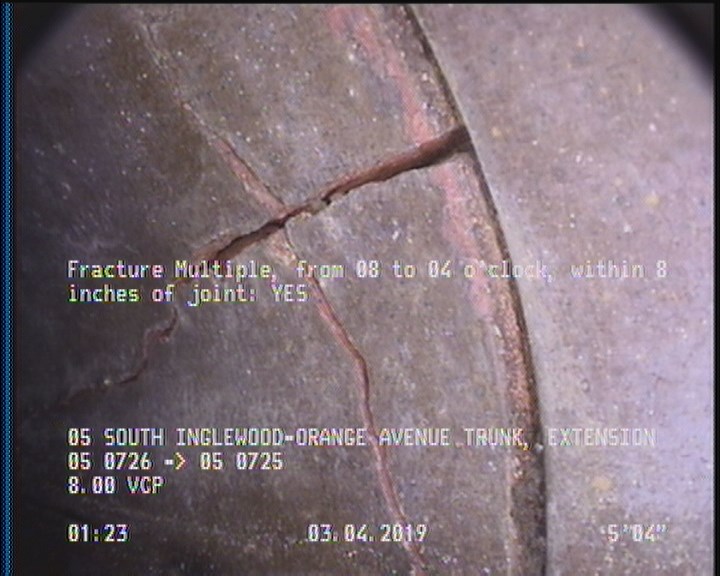

5.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

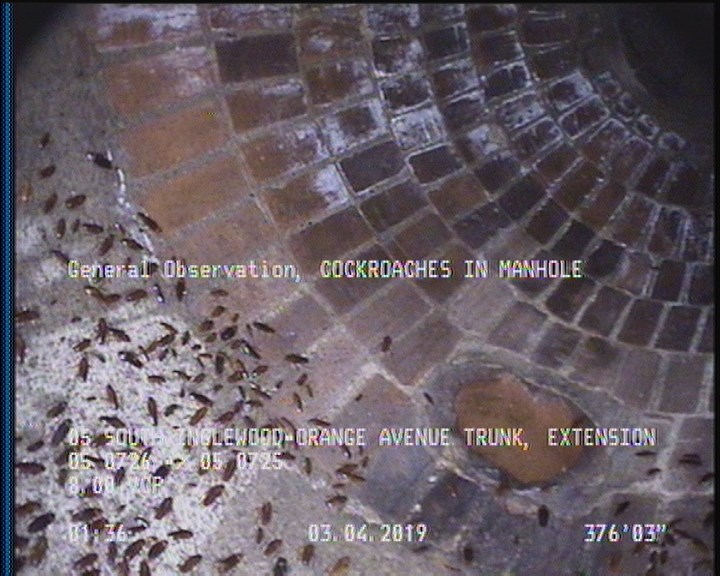

376.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 2 AND 4 O'CLOCK |
| 2 | DAGS | — |
| 376.3 | AMH | 05 0725 |
| 97.7 | TFC | — |
| 283.1 | TFA | — |
| 374 | DAGS | — |
| 376.3 | MGO | COCKROACHES IN MANHOLE |
| 371.5 | FM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 05 0726 |
| 160.2 | TFA | — |
| 337.3 | TBA | — |
| 223 | TFA | — |
| 336.5 | TFC | — |
| 376.3 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 5.3 | FM | — |
Properties (6)
- additional_info
- SC365929
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-04T01:18:34-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
