Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 5, 2019, 05:29 AM

  • 01 1082_01 1081_03042019_230147.mp4

Date
03/04/2019
W/O
750757
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00210
PipeID
P01931
Time
9:29 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6459
Sewer Name
01 HUNTINGTON PARK TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_750757_TV01246_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1082
Downstream MH
01 1081
Dir. of Survey
Downstream
Length Surveyed
398.5 ft.
Total Length
398.5 ft.
Structural Index
4
Structural Quick
4L3A
Structural Rating
297
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
297
Pipe schematic from manhole 01 1082 to 01 1081
MH: 01 1082MH: 01 1081downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 10820 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area9.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES12.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start64 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start64 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish394.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish398.5 ft. AMH - Downstream Manhole, Survey Ends - 01 1081

Observation photos (3)

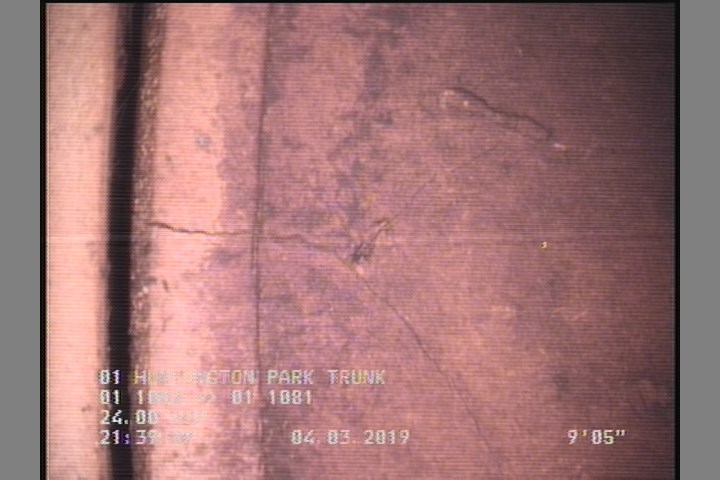

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    9.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

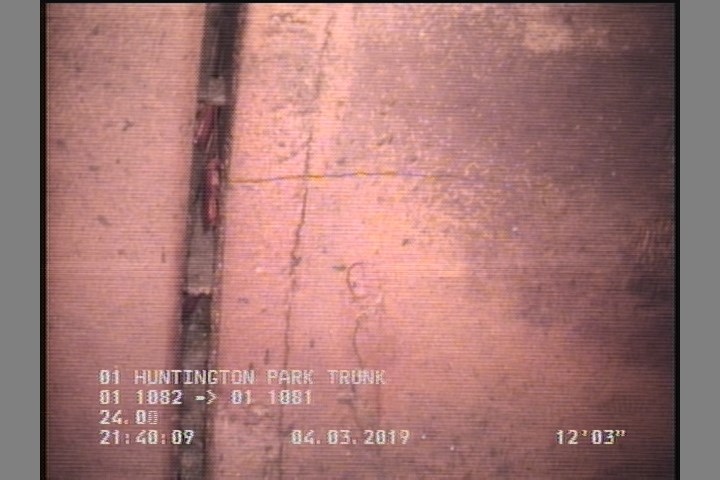

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

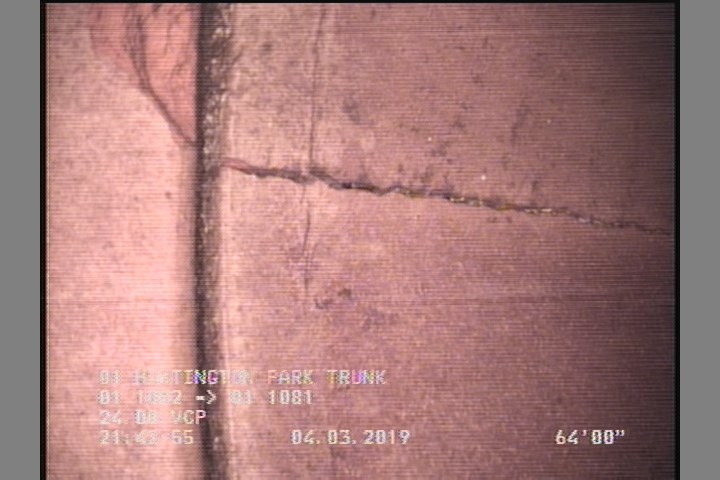

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    64 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01931Work order 750757

Observations (9)

DistanceCodeObservation
64FM—
9.4CM—
0AMH01 1082
394.9FM—
398.5AMH01 1081
0MWL—
12.2CM—
64CM—
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-03-04T21:29:47-08:00
documentation
PROPIPE
is_lateral_inspection
false
