Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 05:50 AM

  • 01 1083_01 1082_03062019_230742.mp4

Date
03/06/2019
W/O
750757
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00210
PipeID
P01932
Time
9:50 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6464
Sewer Name
01 HUNTINGTON PARK TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_750757_TV01246_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1083
Downstream MH
01 1082
Dir. of Survey
Downstream
Length Surveyed
399.2 ft.
Total Length
399.2 ft.
Structural Index
4
Structural Quick
4331
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 01 1083 to 01 1082
MH: 01 1083MH: 01 1082downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 10833 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES6 ft. FS - Fracture Spiral, from 09 to 03 o'clock, within 8 inches of joint: YES, Start43.1 ft. FM - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES43.1 ft. FS - Fracture Spiral, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish44.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start395.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish399.2 ft. AMH - Downstream Manhole, Survey Ends - 01 1082

Observation photos (4)

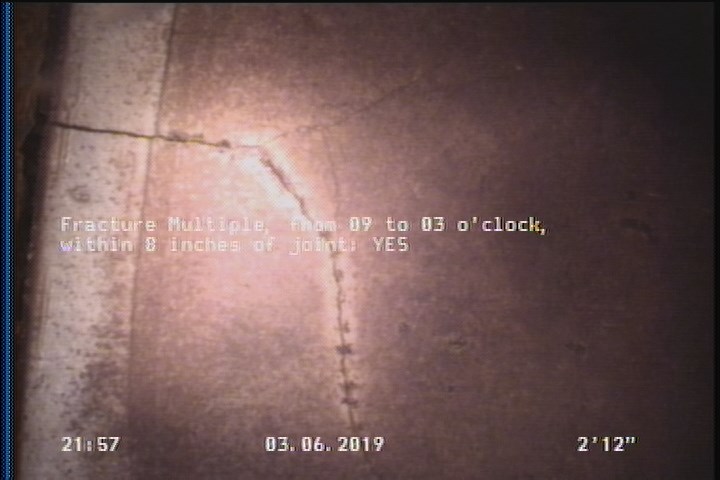

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    3 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

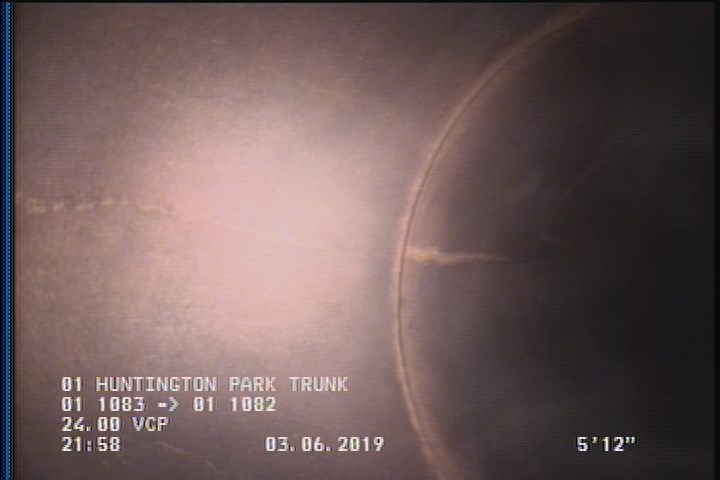

  • Fracture Spiral, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Fracture Spiral, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

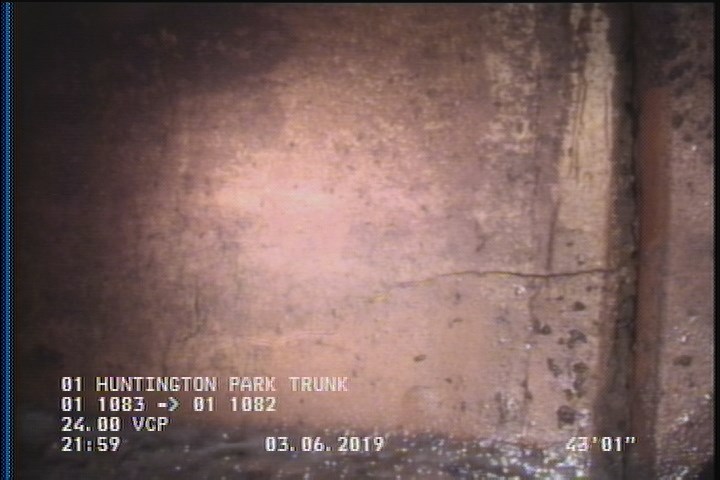

  • Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    43.1 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

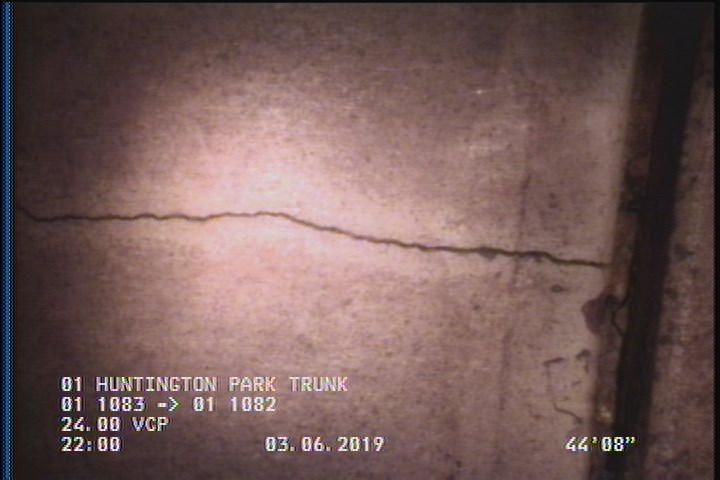

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    44.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01932Work order 750757

Observations (10)

DistanceCodeObservation
399.2AMH01 1082
0MWL—
43.1FM—
3FM—
44.7FM—
0MWM—
395.8FM—
6FS—
43.1FS—
0AMH01 1083

Properties (4)

customer
LACSD
datetime
2019-03-06T21:50:00-08:00
documentation
PROPIPE
is_lateral_inspection
false
