Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 06:59 AM

  • 01 1085_01 1516_03072019_000707.mp4

Date
03/06/2019
W/O
750757
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00210
PipeID
P26311
Time
10:59 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6464
Sewer Name
01 HUNTINGTON PARK TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_750757_TV01246_FEB2019
Sewer Type
Gravity
Material
CAST IRON
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1516
Downstream MH
01 1085
Dir. of Survey
Upstream
Length Surveyed
61.1 ft.
Total Length
61.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 01 1516 to 01 1085
MH: 01 1516MH: 01 1085upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 10852 ft. SCP - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish41.1 ft. RFJ - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR58 ft. SCP - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start61.1 ft. MWM - Water Mark, 35 %of cross sectional area61.1 ft. MWL - Water Level, 35 %of cross sectional area61.1 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH61.1 ft. AMH - Downstream Manhole, Survey Begins - 01 151661.1 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH

Observation photos (2)

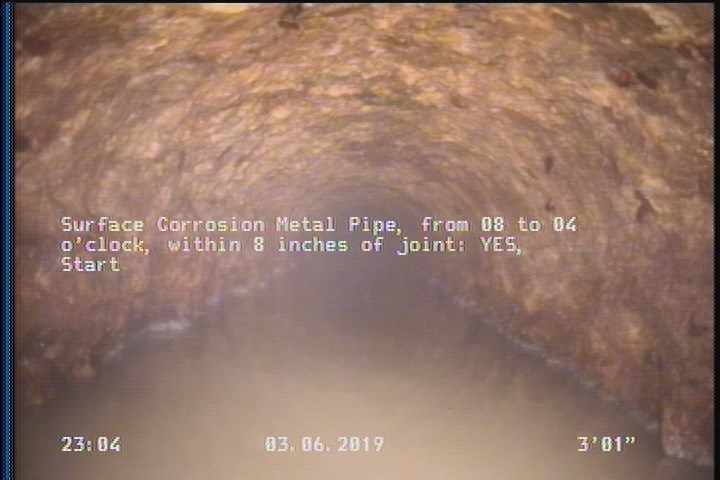

  • Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

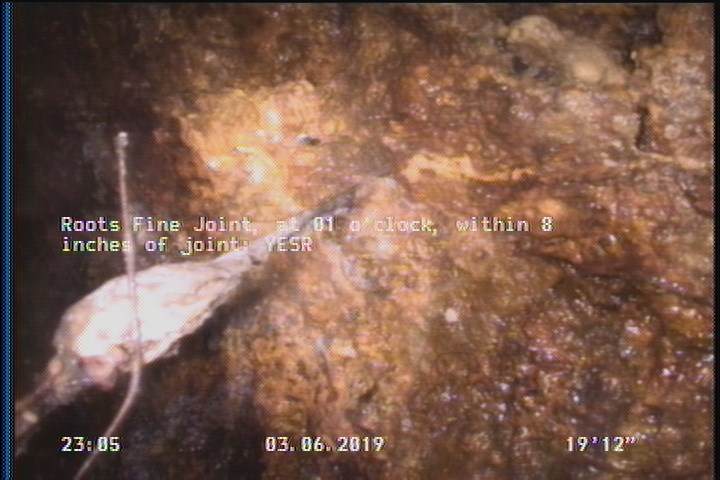

  • Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR

    20 ft. - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR

All inspections of P26311Work order 750757

Observations (9)

DistanceCodeObservation
3.1SCP—
59.1SCP—
20RFJ—
0MWM—
0MWL—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
61.1AMH01 1085
0AMH01 1516
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-03-06T22:59:44-08:00
documentation
PROPIPE
is_lateral_inspection
false
