Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 06:29 AM

  • 01 1516_01 1084_03062019_235121.mp4

Date
03/06/2019
W/O
750757
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00210
PipeID
P01934
Time
10:29 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6464
Sewer Name
01 HUNTINGTON PARK TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_750757_TV01246_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1084
Downstream MH
01 1516
Dir. of Survey
Upstream
Length Surveyed
373.9 ft.
Total Length
373.9 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 01 1084 to 01 1516
MH: 01 1084MH: 01 1516upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 15160 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH0.9 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH3.8 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish35.7 ft. MGO - General Observation - NO MH AT 336'348.1 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start350.9 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES371.9 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES373.9 ft. MWL - Water Level, 40 %of cross sectional area373.9 ft. MWM - Water Mark, 45 %of cross sectional area373.9 ft. AMH - Downstream Manhole, Survey Begins - 01 1084

Observation photos (3)

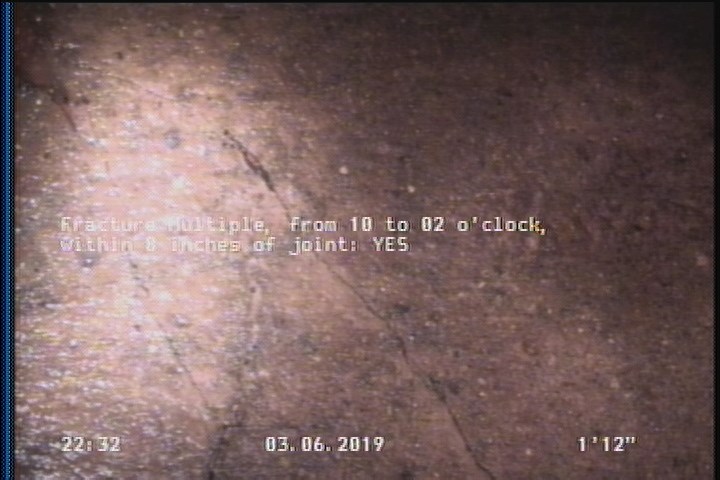

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

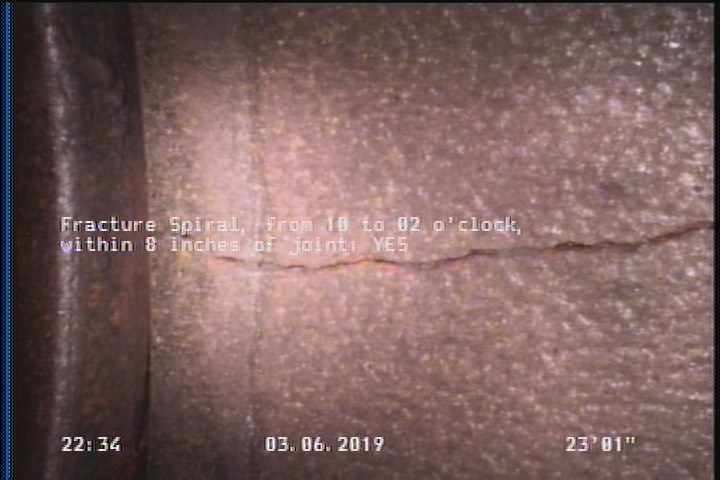

  • Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

    23 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

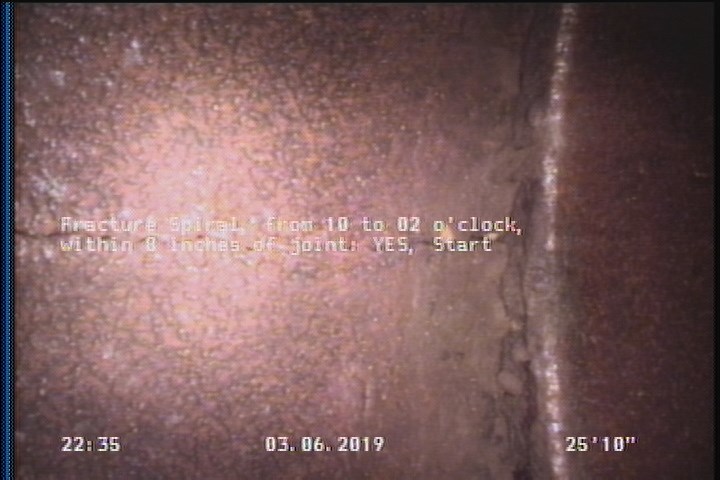

  • Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    25.8 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P01934Work order 750757

Observations (11)

DistanceCodeObservation
373MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
23FS—
373.9AMH01 1516
0MWL—
338.2MGONO MH AT 336'
0MWM—
0AMH01 1084
373.9MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
25.8FS—
370.1FS—
2FM—

Properties (4)

customer
LACSD
datetime
2019-03-06T22:29:52-08:00
documentation
PROPIPE
is_lateral_inspection
false
