Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2019, 07:43 AM

  • 18 0459_18 0458_01302019_001548.mpg

Date
01/29/2019
W/O
745744
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00691
PipeID
P14311
Time
11:43 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6373
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
RFIR_WO_745744_TV18140_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0458
Downstream MH
18 0459
Dir. of Survey
Upstream
Length Surveyed
782.4 ft.
Total Length
782.4 ft.
Structural Index
3
Structural Quick
3Y00
Structural Rating
384
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
388
Pipe schematic from manhole 18 0458 to 18 0459
MH: 18 0458MH: 18 0459upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 04592.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish643 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start773.7 ft. MGO - General Observation - MAG COAT782.4 ft. MWM - Water Mark, 50 %of cross sectional area782.4 ft. AMH - Downstream Manhole, Survey Begins - 18 0458782.4 ft. MWL - Water Level, 50 %of cross sectional area

Observation photos (1)

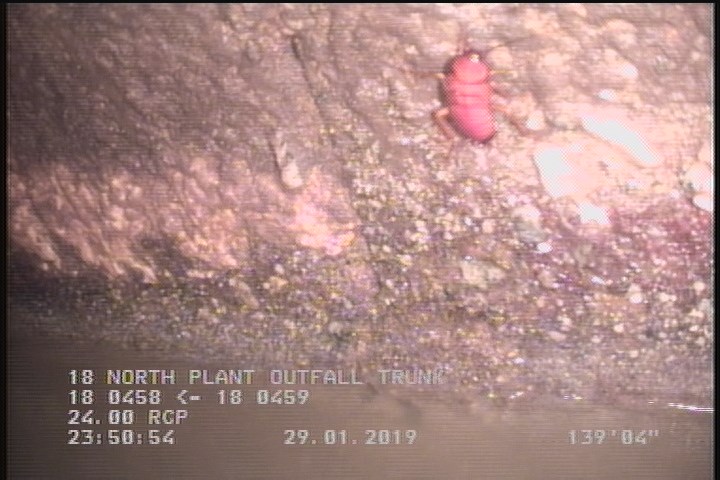

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    139.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14311Work order 745744

Observations (7)

DistanceCodeObservation
782.4AMH18 0459
0MWM—
779.9SAP—
139.4SAP—
0AMH18 0458
0MWL—
8.7MGOMAG COAT

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-29T23:43:55-08:00
documentation
PROPIPE
is_lateral_inspection
false
