Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2019, 06:59 AM

  • 18 0458_18 0457_01292019_232841.mpg

Date
01/29/2019
W/O
745744
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00691
PipeID
P14310
Time
10:59 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6373
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_745744_TV18140_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0458
Downstream MH
18 0457
Dir. of Survey
Downstream
Length Surveyed
777.6 ft.
Total Length
777.6 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
273
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
277
Pipe schematic from manhole 18 0458 to 18 0457
MH: 18 0458MH: 18 0457downstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 04580 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - MAG COAT317.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start687.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"690.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"775.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish777.5 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK777.6 ft. AMH - Downstream Manhole, Survey Ends - 18 0457

Observation photos (1)

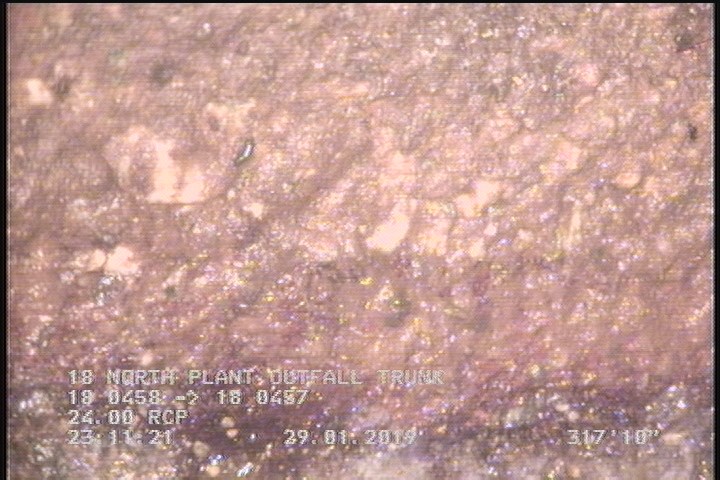

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    317.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14310Work order 745744

Observations (10)

DistanceCodeObservation
777.6AMH18 0457
0MWM—
775.3SAP—
687.7TF—
777.5MGOCONNECTION AT MH 9 OCLOCK
0AMH18 0458
317.8SAP—
0MWL—
690.7TFA—
0MGOMAG COAT

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-29T22:59:11-08:00
documentation
PROPIPE
is_lateral_inspection
false
