Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 09:33 AM
08 0036_08 0035 _01242019_015440.mpg
- Date
- 01/24/2019
- W/O
- 745602
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00016
- PipeID
- P00038
- Time
- 1:33 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5347
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- GARGENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745602_TV08115_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0036
- Downstream MH
- 08 0035
- Dir. of Survey
- Downstream
- Length Surveyed
- 326.9 ft.
- Total Length
- 326.9 ft.
- Structural Index
- 4
- Structural Quick
- 5143
- Structural Rating
- 20
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 126
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 146
Observation photos (5)

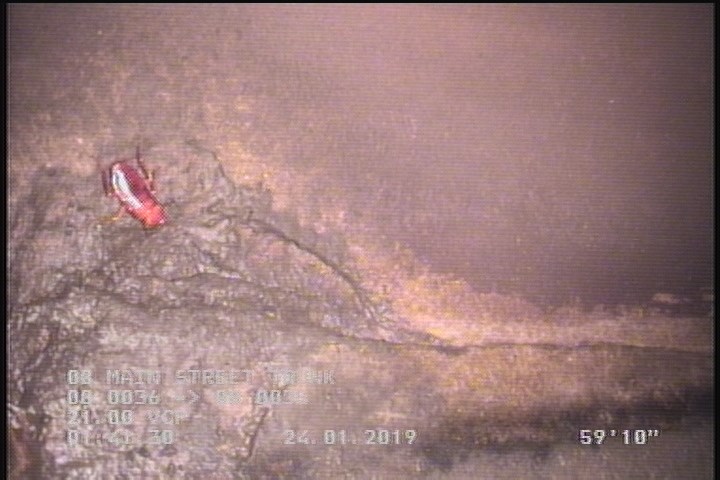

59.8 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES
188.9 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES
191.8 ft. - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

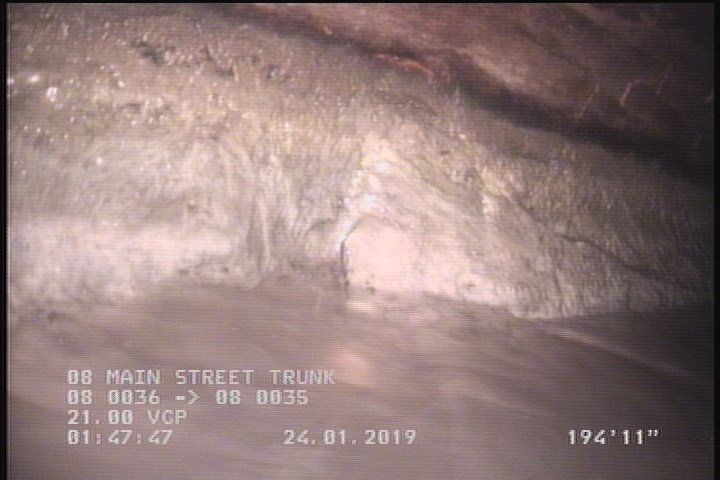

194.9 ft. - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES

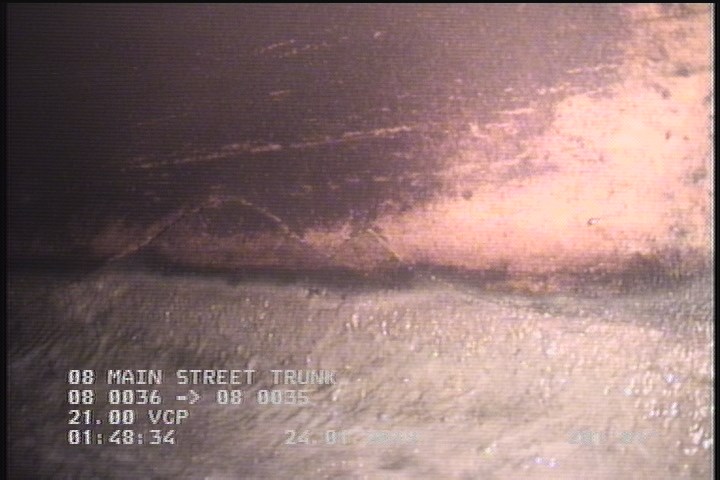

201.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 277.5 | TFC | — |
| 326.9 | AMH | 08 0035 |
| 33.1 | TFC | — |
| 132.8 | TFC | — |
| 187 | TFC | — |
| 84.5 | TFC | — |
| 201.1 | FM | — |
| 0.1 | MWM | — |
| 59.8 | FM | — |
| 0 | AMH | 08 0036 |
| 235.4 | TFC | — |
| 9 | DSF | — |
| 188.9 | CM | — |
| 194.9 | B | — |
| 323.9 | DSF | — |
| 191.8 | FM | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-24T01:33:39-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
