Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 08:57 AM

  • 08 0055_08 0054 _01242019_010548.mpg

Date
01/24/2019
W/O
745602
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00016
PipeID
P00057
Time
12:57 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5347
Sewer Name
08 MAIN STREET TRUNK
City
GARGENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_745602_TV08115_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0055
Downstream MH
08 0054
Dir. of Survey
Downstream
Length Surveyed
62.4 ft.
Total Length
62.4 ft.
Structural Index
4
Structural Quick
4621
Structural Rating
26
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole 08 0055 to 08 0054
MH: 08 0055MH: 08 0054downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 00550 ft. MWL - Water Level, 5 %of cross sectional area19.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES26 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES35.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start62.4 ft. AMH - Downstream Manhole, Survey Ends - 08 005462.4 ft. MGO - General Observation - DEBRIS IN DROP62.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

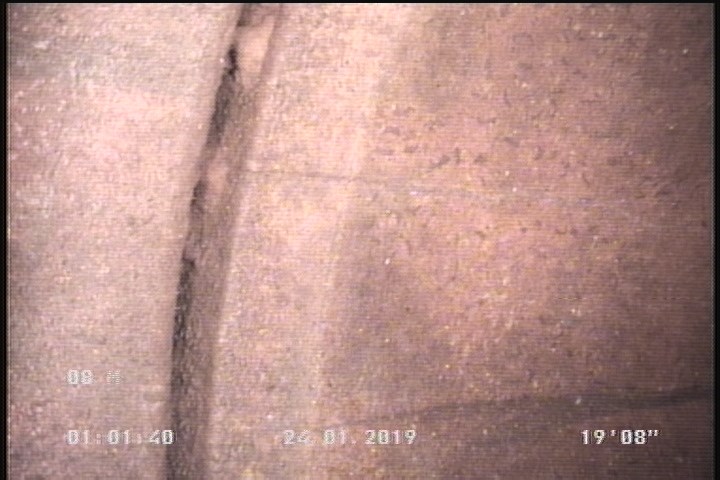

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    19.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

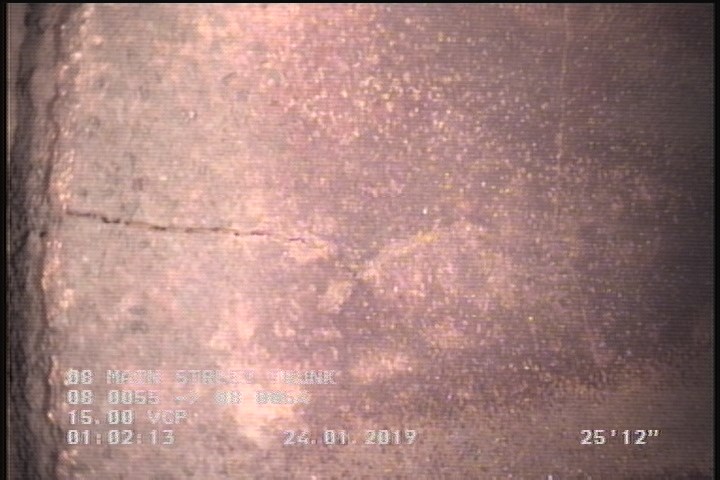

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    26 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

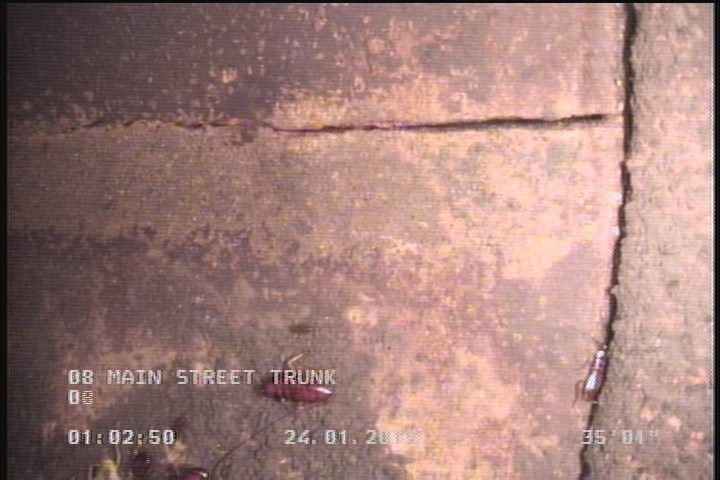

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    35.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00057Work order 745602

Observations (9)

DistanceCodeObservation
0MWM—
62.4AMH08 0054
62.4MGODEBRIS IN DROP
62.4FM—
0AMH08 0055
19.7CL—
35.1FM—
0MWL—
26FM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-24T00:57:41-08:00
documentation
PROPIPE
is_lateral_inspection
false
