Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 10:16 AM
08 0032_08 0031 _01242019_023953.mpg
- Date
- 01/24/2019
- W/O
- 745602
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00016
- PipeID
- P00034
- Time
- 2:16 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5347
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- GARGENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745602_TV08115_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0032
- Downstream MH
- 08 0031
- Dir. of Survey
- Downstream
- Length Surveyed
- 335.6 ft.
- Total Length
- 335.6 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 108
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 117
Observation photos (3)

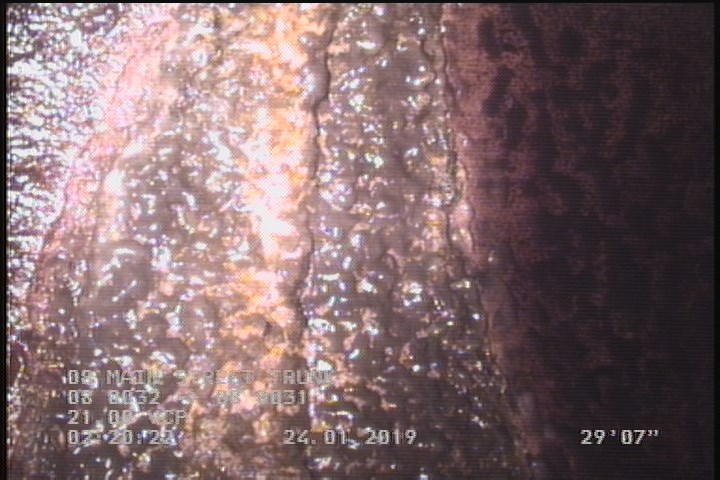

29.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

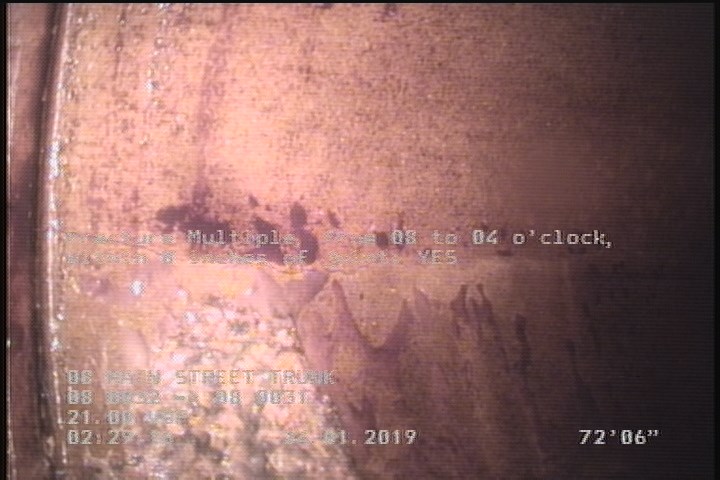

72.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

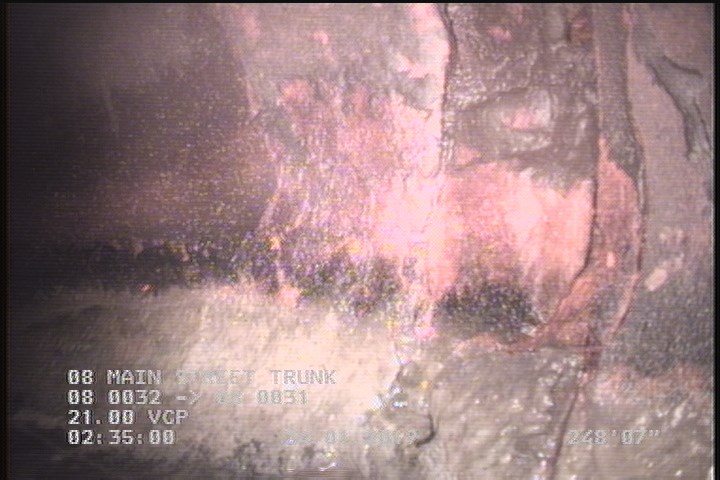

248.6 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 9 OCLOCK |
| 335.6 | AMH | 08 0031 |
| 36.3 | TFC | — |
| 0 | MWM | — |
| 0 | AMH | 08 0032 |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK |
| 289.9 | TFC | — |
| 72.5 | FM | — |
| 85.9 | TFC | — |
| 189 | TFC | — |
| 66.1 | OBZ | UNKNOWN DEBRIS IN LINE |
| 248.6 | B | — |
| 29.6 | DAE | — |
| 0 | MWL | — |
| 296.8 | DAE | — |
| 137.4 | TFC | — |
| 238.1 | TFC | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-24T02:16:48-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
