Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 05:28 AM

  • 01 0185_01 0184_01082019_213812.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01226
Time
9:28 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0184
Downstream MH
01 0185
Dir. of Survey
Upstream
Length Surveyed
144.1 ft.
Total Length
144.1 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 01 0184 to 01 0185
MH: 01 0184MH: 01 0185upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 01850.4 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH2.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish10.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"29.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start34 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"40.8 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish46.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"48.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 8"54.2 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"68.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 8"87.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"93.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"137.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start144.1 ft. MWM - Water Mark, 15 %of cross sectional area144.1 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT144.1 ft. MGO - General Observation - CAPPED CONNECTION AT 3 O' CLOCK AT MH144.1 ft. AMH - Downstream Manhole, Survey Begins - 01 0184144.1 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

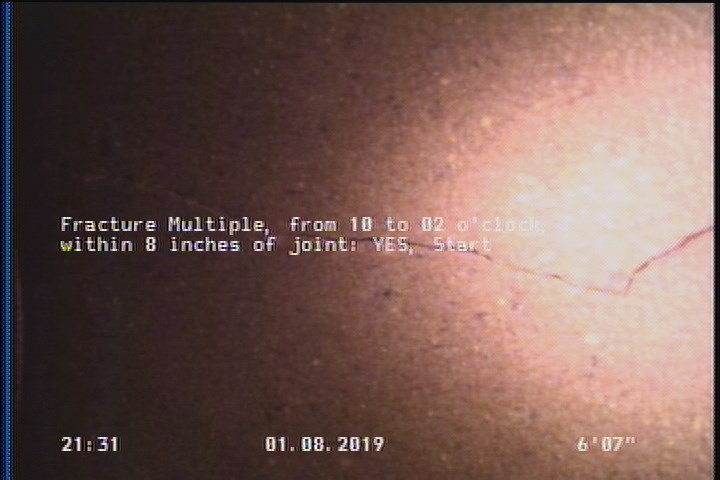

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    6.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

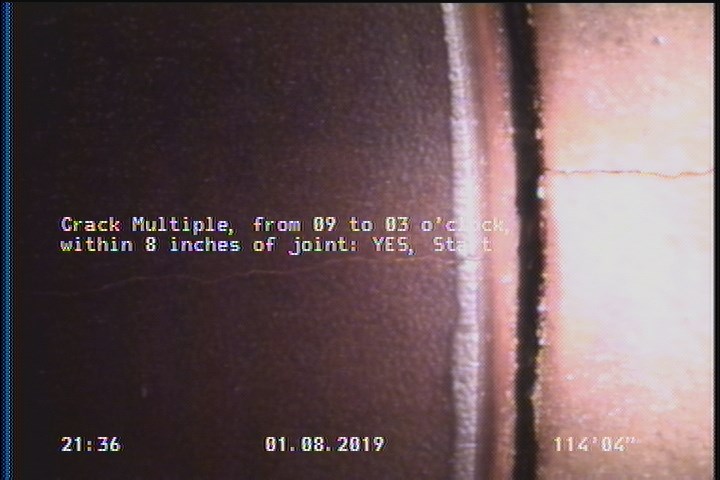

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    114.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01226Work order 740026

Observations (19)

DistanceCodeObservation
0MWM—
89.9TBA—
103.3FM—
57TFC—
143.7MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0MGOCAPPED CONNECTION AT 9 O' CLOCK AT
0MGOCAPPED CONNECTION AT 3 O' CLOCK AT MH
133.5TFC—
0AMH01 0184
141.9CM—
50.8TFA—
97.8TFC—
6.6FM—
110.1TFC—
75.2TB—
0MWL—
144.1AMH01 0185
114.3CM—
95.9TFD—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-08T21:28:07-08:00
documentation
PROPIPE
is_lateral_inspection
false
