Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 05:11 AM

  • 01 0183A_01 0183_01082019_212528.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01224
Time
9:11 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0183
Downstream MH
01 0183A
Dir. of Survey
Upstream
Length Surveyed
151.6 ft.
Total Length
151.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 01 0183 to 01 0183A
MH: 01 0183MH: 01 0183Aupstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 0183A3.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish45.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"59.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"69.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"80.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"82.9 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish105.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"118.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start133.6 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start151.6 ft. AMH - Downstream Manhole, Survey Begins - 01 0183151.6 ft. MWL - Water Level, 10 %of cross sectional area151.6 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH151.6 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (2)

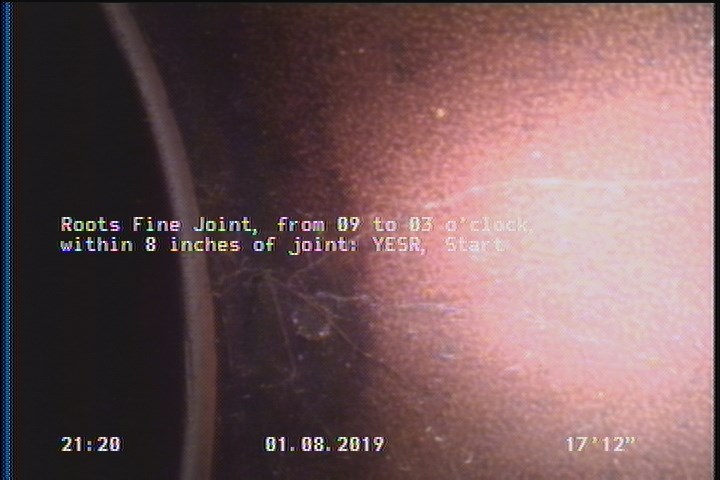

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

    18 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

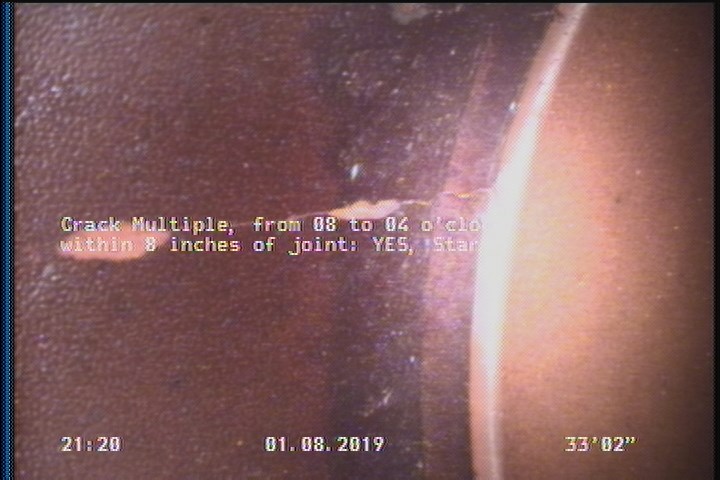

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    33.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01224Work order 740026

Observations (14)

DistanceCodeObservation
151.6AMH01 0183A
106.1TF—
71TF—
46.5TFC—
33.2CM—
82.5TFC—
0AMH01 0183
18RFJ—
148.3CM—
92.2TBA—
0MWL—
68.7RFJ—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-08T21:11:24-08:00
documentation
PROPIPE
is_lateral_inspection
false
