Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 06:43 AM

  • 01 0180_01 0179A_01082019_225420.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01220
Time
10:43 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0180
Downstream MH
01 0179A
Dir. of Survey
Downstream
Length Surveyed
161.1 ft.
Total Length
161.1 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 01 0180 to 01 0179A
MH: 01 0180MH: 01 0179Adownstream0 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONNECTION AT 3 O' CLOCK AT MH0 ft. AMH - Upstream Manhole, Survey Begins - 01 01805.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"48.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"69.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"75.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"102.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"108.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"113.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"128.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"132.3 ft. FS - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES152 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"158.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish161.1 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH161.1 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH161.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0179A

Observation photos (2)

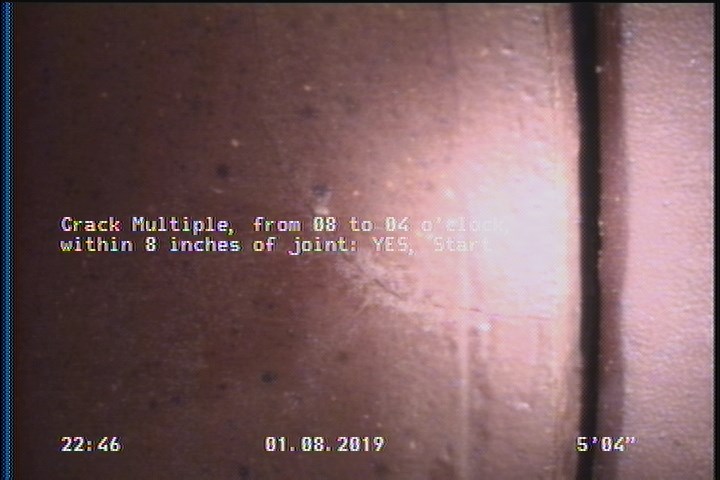

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

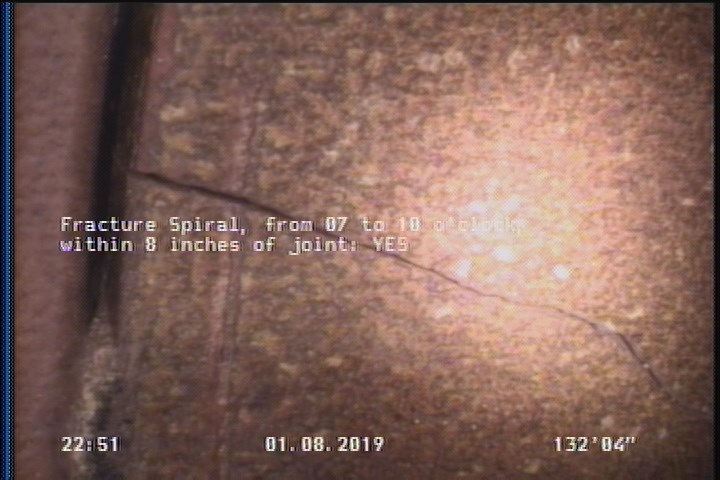

  • Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

    132.3 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

All inspections of P01220Work order 740026

Observations (20)

DistanceCodeObservation
113.5TFC—
161.1MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
108.1TFC—
158.6CM—
128.4TFC—
102.4TFC—
0MGOCAPPED CONNECTION AT 9 O' CLOCK AT
69.6TF—
0MWL—
48.8TFC—
161.1MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
161.1AMH01 0179A
47.2TFA—
0MWM—
132.3FS—
152TFC—
75.3TF—
0MGOCAPPED CONNECTION AT 3 O' CLOCK AT MH
5.4CM—
0AMH01 0180

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-08T22:43:38-08:00
documentation
PROPIPE
is_lateral_inspection
false
