Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 05:45 AM

  • E 0098_01 0185A_01082019_215356.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P02149
Time
9:45 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0185A
Downstream MH
E 0098
Dir. of Survey
Upstream
Length Surveyed
160.7 ft.
Total Length
160.7 ft.
Structural Index
4
Structural Quick
4231
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 01 0185A to E 0098
MH: 01 0185AMH: E 0098upstream0 ft. AMH - Upstream Manhole, Survey Ends - E 00980.5 ft. FM - Fracture Multiple, from 09 to 09 o'clock, within 8 inches of joint: YES, Finish64.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"76.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"102.4 ft. FM - Fracture Multiple, from 09 to 09 o'clock, within 8 inches of joint: YES, Change108.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish108.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start108.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"114.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"120.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"148.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start160.7 ft. MWL - Water Level, 10 %of cross sectional area160.7 ft. MWM - Water Mark, 10 %of cross sectional area160.7 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH160.7 ft. AMH - Downstream Manhole, Survey Begins - 01 0185A

Observation photos (2)

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

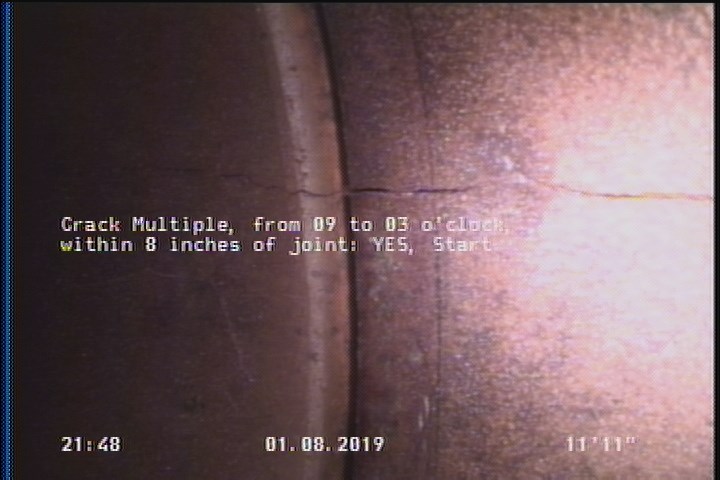

    11.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

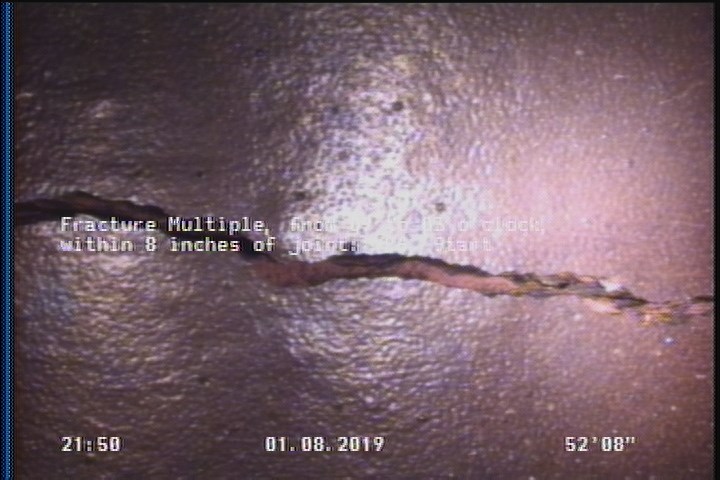

    52.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P02149Work order 740026

Observations (15)

DistanceCodeObservation
58.3FM—
52.6CM—
52.6FM—
51.9TFC—
160.2FM—
11.9CM—
84.3TF—
0MWL—
40TFC—
96.2TF—
0MWM—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0AMH01 0185A
160.7AMHE 0098
46.1TFC—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-08T21:45:25-08:00
documentation
PROPIPE
is_lateral_inspection
false
