Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 10:59 AM

  • 01 0189_01 0188_01082019_030642.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01230
Time
2:59 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5331
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0189
Downstream MH
01 0188
Dir. of Survey
Downstream
Length Surveyed
50.8 ft.
Total Length
50.8 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 01 0189 to 01 0188
MH: 01 0189MH: 01 0188downstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH0 ft. AMH - Upstream Manhole, Survey Begins - 01 01890 ft. MWL - Water Level, 30 %of cross sectional area3.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start25.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"47.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish50.8 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH50.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0188

Observation photos (2)

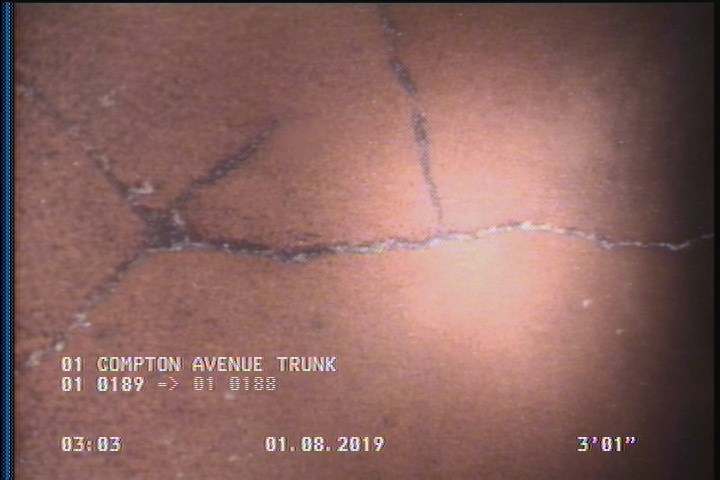

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

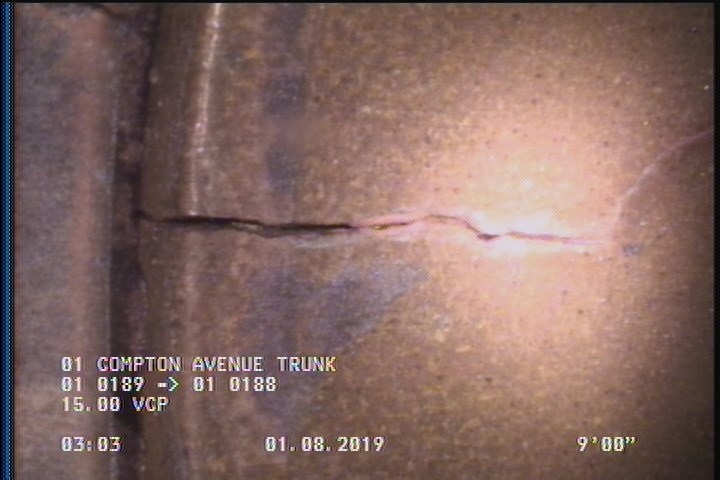

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01230Work order 740026

Observations (11)

DistanceCodeObservation
0MWM—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
3.1CM—
50.8MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
47.4FM—
25.5TFC—
0AMH01 0189
9CM—
50.8AMH01 0188
9FM—
0MWL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-08T02:59:50-08:00
documentation
PROPIPE
is_lateral_inspection
false
