Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 07:54 AM

  • 01 0187_01 0186_01092019_000618.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01228
Time
11:54 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0187
Downstream MH
01 0186
Dir. of Survey
Downstream
Length Surveyed
190.8 ft.
Total Length
190.8 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 01 0187 to 01 0186
MH: 01 0187MH: 01 0186downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01870 ft. MWL - Water Level, 40 %of cross sectional area0.1 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start12.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"25.9 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start46.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"48.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"91.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"93.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"123.3 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish143 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"144.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"190.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0186190.8 ft. MGO - General Observation - CAPPED CONNECTION AT 3 O' CLOCK AT MH190.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

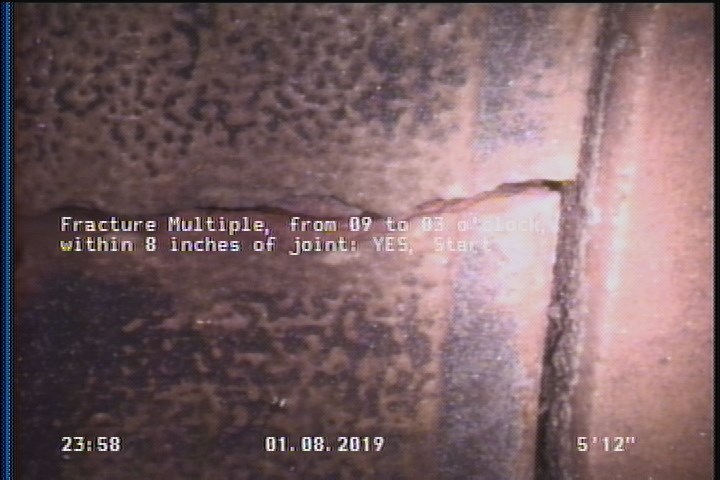

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

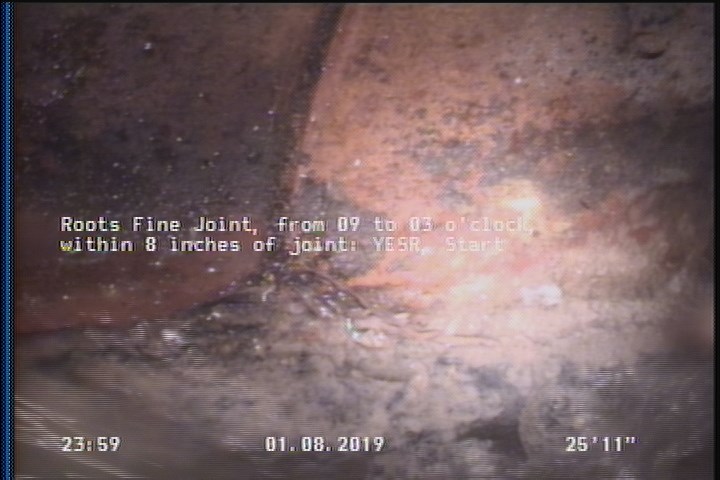

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

    25.9 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

All inspections of P01228Work order 740026

Observations (17)

DistanceCodeObservation
48.4TFC—
0MWM—
0AMH01 0187
190.8AMH01 0186
123.3RFJ—
12.7TFC—
25.9RFJ—
0.1MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0MWL—
6FM—
91.6TFC—
93.1TFC—
190.8MGOCAPPED CONNECTION AT 3 O' CLOCK AT MH
144.3TFC—
143TFC—
46.6TFC—
190.8FM—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-08T23:54:47-08:00
documentation
PROPIPE
is_lateral_inspection
false
