Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 11:15 AM

  • 01 0188_01 0187_01082019_032746.mp4

Date
01/08/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01229
Time
3:15 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5331
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0188
Downstream MH
01 0187
Dir. of Survey
Downstream
Length Surveyed
119.7 ft.
Total Length
119.7 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 01 0188 to 01 0187
MH: 01 0188MH: 01 0187downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. AMH - Upstream Manhole, Survey Begins - 01 01883.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start14.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"15.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start15.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish41.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"61.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"76.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"98.4 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR109.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"119.7 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH119.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish119.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0187

Observation photos (3)

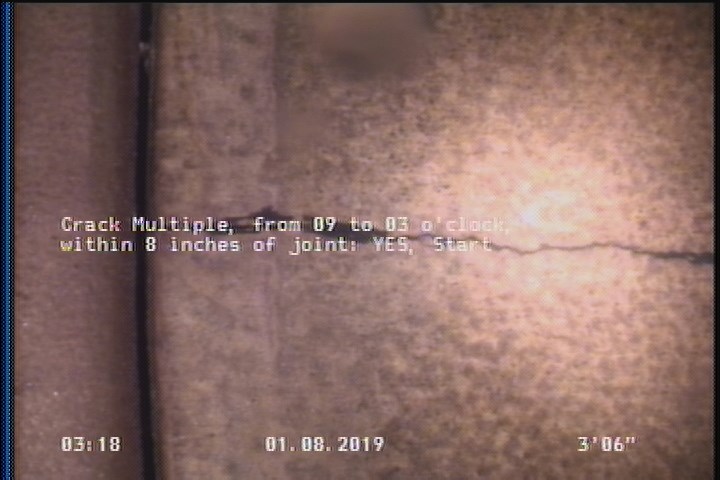

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

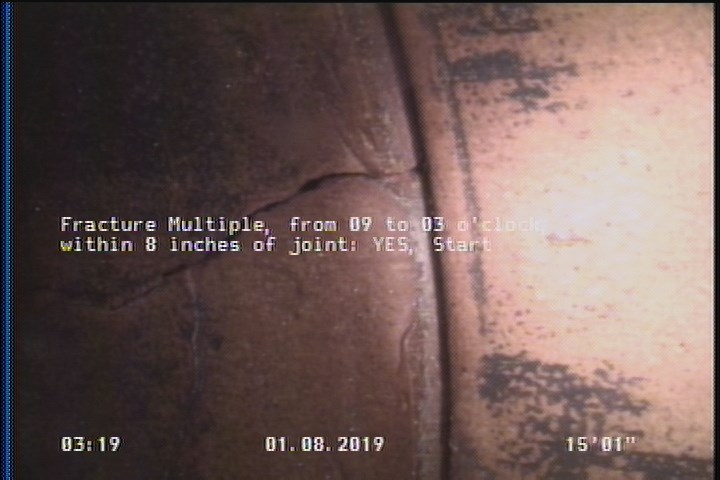

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    15.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

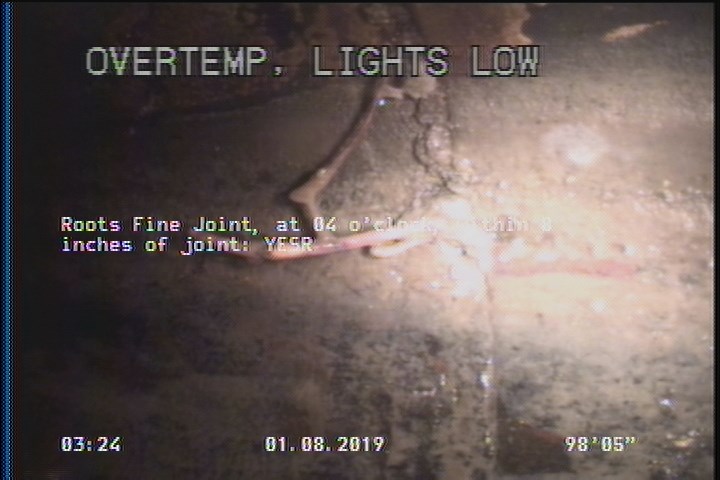

  • Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR

    98.4 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR

All inspections of P01229Work order 740026

Observations (16)

DistanceCodeObservation
0MWL—
41.1TFC—
0MWM—
14.1TFC—
109.5TFC—
119.7MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
15.1FM—
3.4CM—
15.1CM—
119.7FM—
119.7AMH01 0187
98.4RFJ—
61.8TF—
0AMH01 0188
76.5TFC—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-01-08T03:15:44-08:00
documentation
PROPIPE
is_lateral_inspection
false
