Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 10:53 AM

  • 01 0172_01 0171_01092019_031358.mp4

Date
01/09/2019
W/O
740026
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00202
PipeID
P01201
Time
2:53 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5332
Sewer Name
01 COMPTON AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_740026_TV01237_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0172
Downstream MH
01 0171
Dir. of Survey
Downstream
Length Surveyed
173.7 ft.
Total Length
173.7 ft.
Structural Index
4
Structural Quick
4331
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 01 0172 to 01 0171
MH: 01 0172MH: 01 0171downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01720 ft.0 ft. MWL - Water Level, 15 %of cross sectional area2.6 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES5.3 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start8.9 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish8.9 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start13.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"39.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"48.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"72.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"91.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"106 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"114.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"119.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"122.1 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish158.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"166.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start167.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"170.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish173.7 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH173.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0171

Observation photos (4)

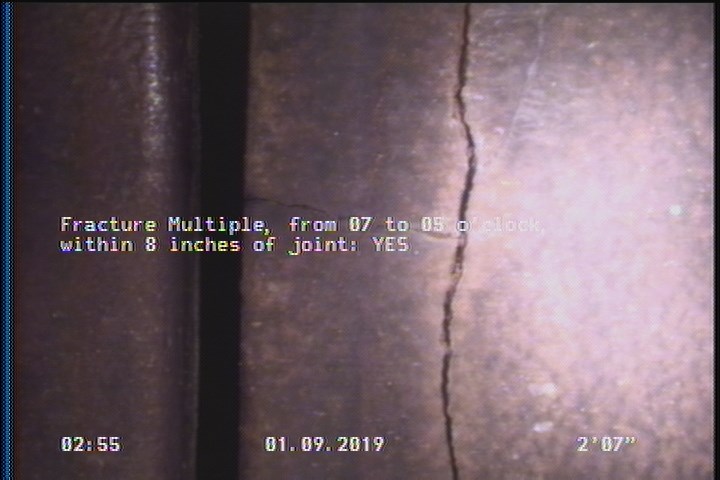

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    2.6 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

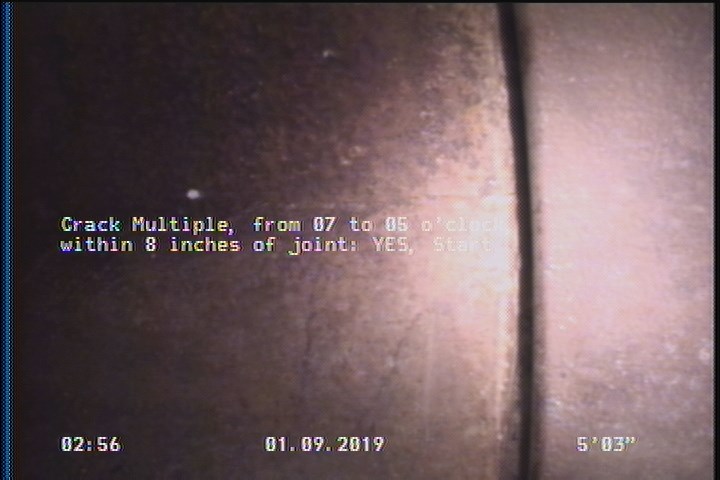

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    5.3 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

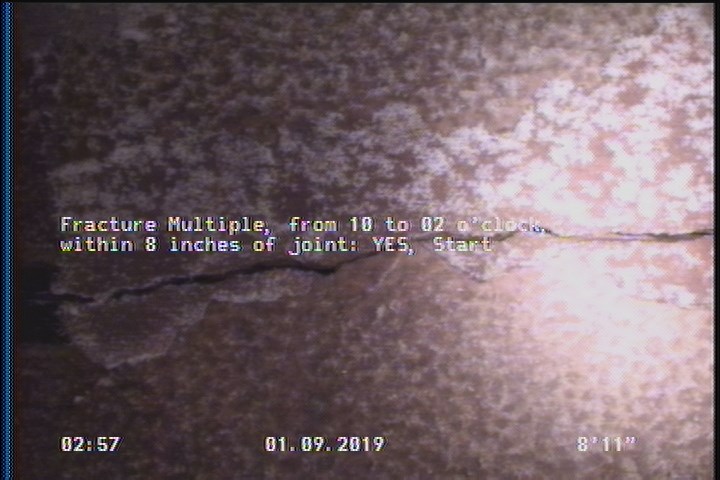

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    8.9 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

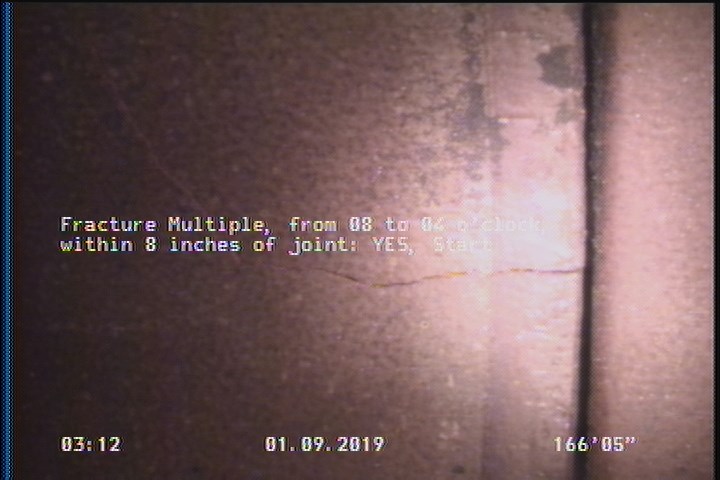

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    166.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01201Work order 740026

Observations (23)

DistanceCodeObservation
106TFC—
8.9CM—
2.6FM—
0MWM—
158.9TFC—
91.2TFC—
0AMH01 0172
173.7MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
170.9FM—
8.9FM—
13.9TF—
122.1FM—
119.9TF—
39.8TFC—
114.5TFC—
0——
166.4FM—
173.7AMH01 0171
72.3TF—
0MWL—
5.3CM—
48.6TF—
167.6TF—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-09T02:53:35-08:00
documentation
PROPIPE
is_lateral_inspection
false
