Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 06:14 AM

  • 15 1095_15 1094 _02052018_000744.mp4

Date
05/01/2018
W/O
696294
Weather
Dry
Operator/Surveyor
S . LOPEZ
Sewer ID
Z00614
PipeID
P12855
Time
11:14 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5584
Sewer Name
15 MERCED TRUNK, SECTION 1
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_696294_TV15099_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
15 1095
Downstream MH
15 1094
Dir. of Survey
Downstream
Length Surveyed
322.7 ft.
Total Length
322.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 1095 to 15 1094
MH: 15 1095MH: 15 1094downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 10954.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"5.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"60.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"101.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"111.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"122.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"222.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"252.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"280.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start - DEBRIS309.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"322.7 ft. AMH - Downstream Manhole, Survey Ends - 15 1094322.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES, Finish322.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish - COCKROACHES IN MANHOLE

Observation photos (1)

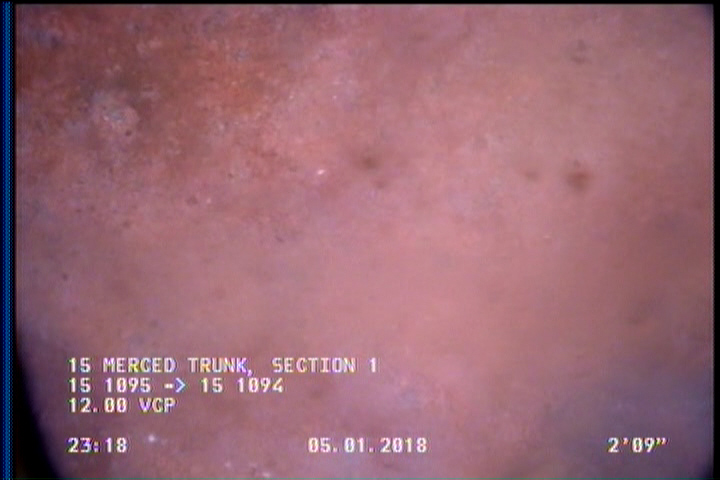

  • Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12855Work order 696294

Observations (17)

DistanceCodeObservation
101.2TFC—
0MWM—
0DAGS—
122.9TFA—
322.7AMH15 1094
4.8TFC—
222.1TFA—
0MWL—
60.9TFC—
322.7DAGS—
252.9TFA—
111.9TFA—
309.7TFC—
0AMH15 1095
5.8TFC—
322.7DSZCOCKROACHES IN MANHOLE
280.3DSZDEBRIS

Properties (5)

additional_info
SC358545
custom_field_two
3
customer
LACSD
datetime
2018-05-01T23:14:16-07:00
is_lateral_inspection
false
