Wastewater/Activity/PacpInspection/1.0Jan 24, 2018, 07:01 AM
14 0467_14 0466 _23012018_232046.mp4
- Date
- 01/23/2018
- W/O
- 685065
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18556
- Time
- 11:01 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5384
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_685065_TV14023_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0467
- Downstream MH
- 14 0466
- Dir. of Survey
- Downstream
- Length Surveyed
- 340.9 ft.
- Total Length
- 340.9 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 335
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 473
Observation photos (3)

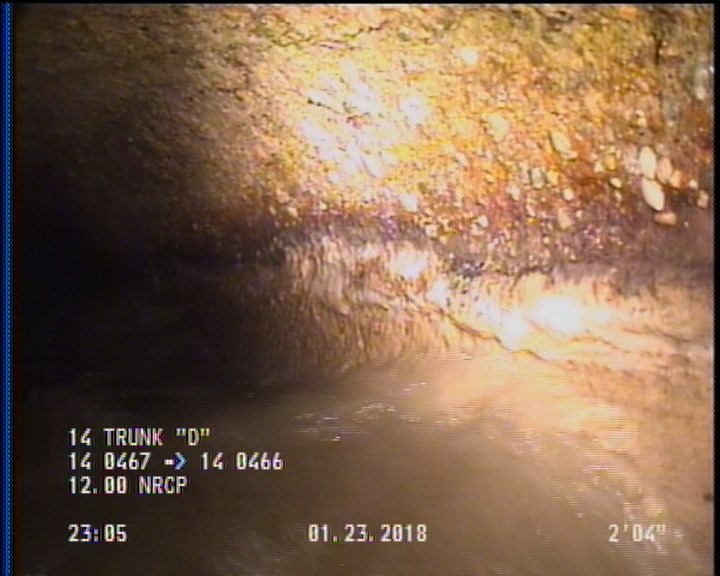

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

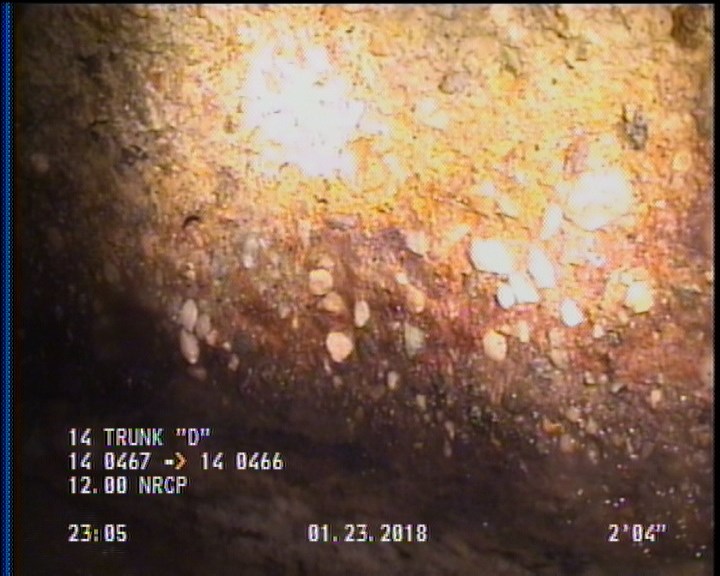

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

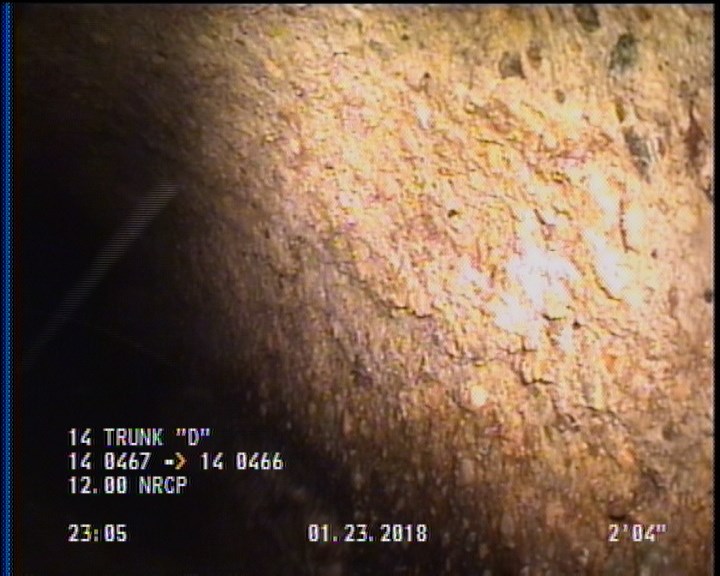

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 76.1 | TFC | — |
| 0 | AMH | 14 0467 |
| 2 | DAGS | — |
| 338.8 | SSS | — |
| 340.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 299.3 | TFC | — |
| 338.8 | DAGS | — |
| 338.8 | SAP | — |
| 2 | SAP | — |
| 226.2 | TFC | — |
| 340.9 | AMH | 14 0466 |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 148.7 | TFC | — |
Properties (5)
- additional_info
- SC346963
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-23T23:01:11-08:00
- is_lateral_inspection
- false
