Wastewater/Activity/PacpInspection/1.0Apr 11, 2019, 09:56 AM
F 0170_F 0167_04112019_030648.mp4
- Date
- 04/11/2019
- W/O
- 761667
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00044
- PipeID
- P10312
- Time
- 2:56 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5853
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37A
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761667_TV18093_APR2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- F 0170
- Downstream MH
- F 0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 9 ft.
- Total Length
- 9 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

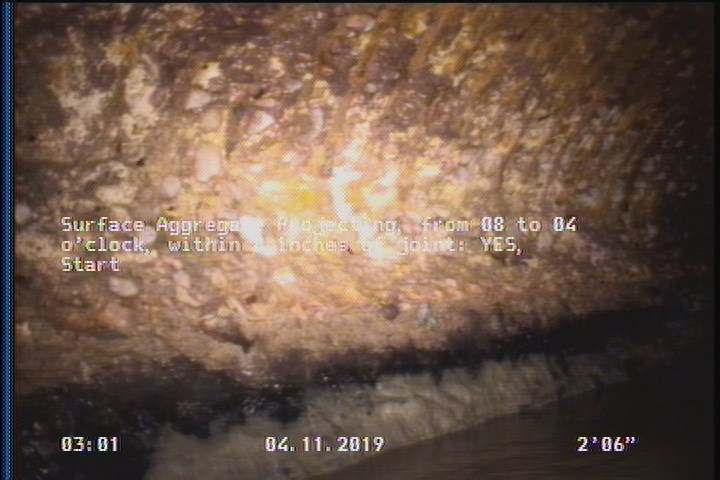

2.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

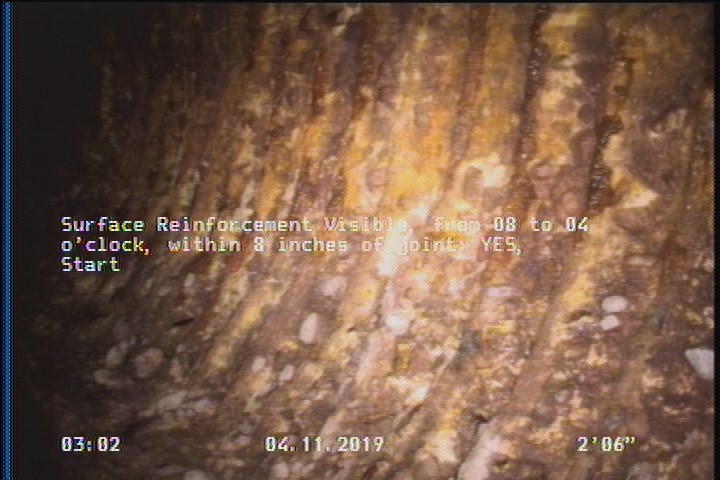

2.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

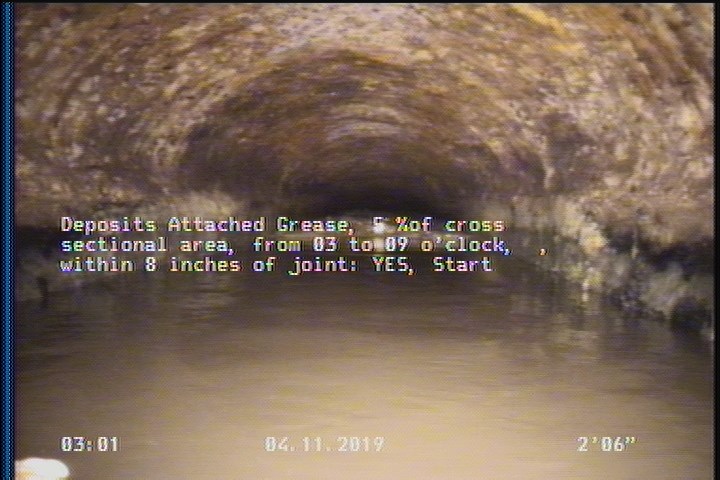

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

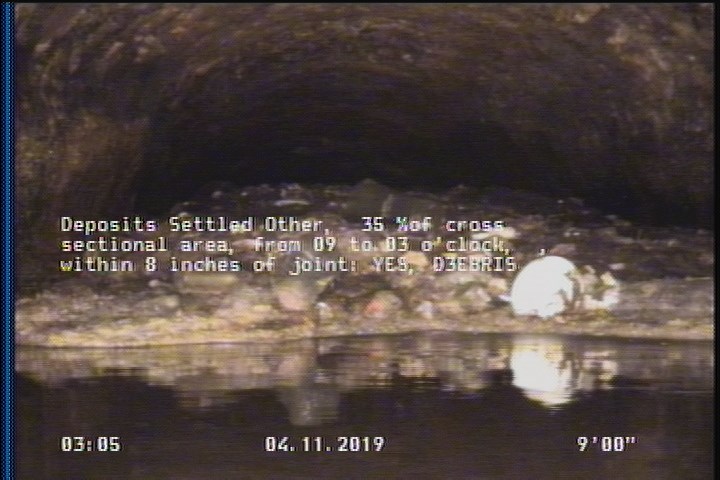

9 ft. - Deposits Settled Other, 35 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 9 | SRV | — |
| 2.5 | SAP | — |
| 9 | SAP | — |
| 9 | DSZ | DEBRIS |
| 0 | AMH | F 0170 |
| 9 | DAGS | — |
| 2.5 | SRV | — |
| 9 | MSA | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 2.5 | DAGS | — |
Properties (5)
- additional_info
- SC366094
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-11T02:56:02-07:00
- is_lateral_inspection
- false
