Wastewater/Activity/PacpInspection/1.0Apr 9, 2019, 07:04 AM
C 0608_C 0607 _04092019_001044.mp4
- Date
- 04/09/2019
- W/O
- 761481
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00929
- PipeID
- P22844
- Time
- 12:04 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5848
- Sewer Name
- C JOINT OUTFALL C - UNIT 3E REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761481_TV03176_APR2019
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- C 0608
- Downstream MH
- C 0607
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.5 ft.
- Total Length
- 2.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

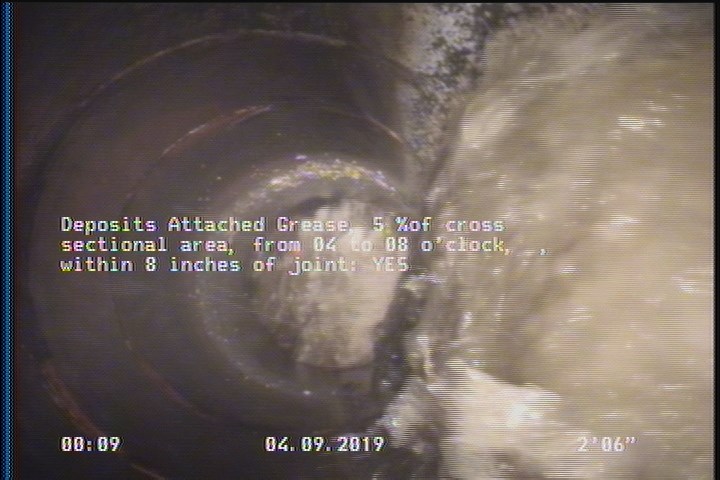

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MGO | CONNECTIONS AT BOTH 3 AND 9 O' CLOCK AT MH |
| 0 | AMH | C0608 |
| 2.5 | MSA | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 2.5 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC366088
- customer
- LACSD
- datetime
- 2019-04-09T00:04:46-07:00
- is_lateral_inspection
- false
- year_laid
- 37994
