Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 9, 2019, 05:49 AM

  • C 0222B_C 0609 _04082019_230841.mp4

Date
04/08/2019
W/O
761481
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00929
PipeID
P22846
Time
10:49 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5848
Sewer Name
C JOINT OUTFALL C - UNIT 3E REPLACEMENT
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_761481_TV03176_APR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
C 0222B
Downstream MH
C 0609
Dir. of Survey
Downstream
Length Surveyed
30 ft.
Total Length
30 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4121
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole C 0222B to C 0609
MH: C 0222BMH: C 0609downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 0222B0 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.5 ft. LD - Alignment Down, 5 %7.3 ft. MWL - Water Level, 60 %of cross sectional area13.1 ft. MGO - General Observation - HEAVY FLOW FROM CONNECTIONS16.1 ft. MCU - Camera Underwater, Start29.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish29.9 ft. MCU - Camera Underwater, Finish30 ft. MGO - General Observation - LIFTED MH TO CONFIRM CAMERA LOCATION30 ft. AMH - Downstream Manhole, Survey Ends - C 0609

Observation photos (1)

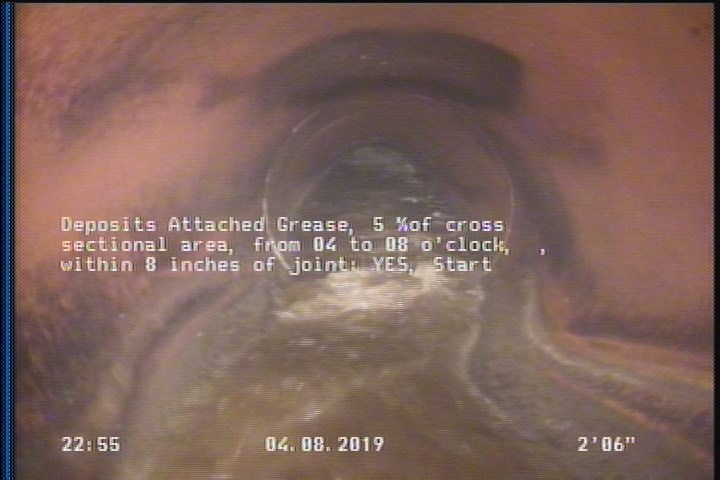

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P22846Work order 761481

Observations (13)

DistanceCodeObservation
0MWL—
0MWM—
2.5DAGS—
7.3MWL—
29.9DAGS—
2.5LD—
30MGOLIFTED MH TO CONFIRM CAMERA LOCATION
0AMHC 0222B
13.1MGOHEAVY FLOW FROM CONNECTIONS
30AMHC 0609
16.1MCU—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
29.9MCU—

Properties (6)

additional_info
SC366088
custom_field_two
5
customer
LACSD
datetime
2019-04-08T22:49:51-07:00
is_lateral_inspection
false
year_laid
37994
