Wastewater/Activity/PacpInspection/1.0Apr 30, 2019, 07:01 AM
02 0947A_H 0188 _04302019_002836.mp4
- Date
- 04/30/2019
- W/O
- 761346
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00279
- PipeID
- P04585
- Time
- 12:01 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6522
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761346_TV02334_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0947A
- Downstream MH
- H 0188
- Dir. of Survey
- Downstream
- Length Surveyed
- 123.3 ft.
- Total Length
- 123.3 ft.
- Structural Index
- 4
- Structural Quick
- 4C36
- Structural Rating
- 90
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 94
Observation photos (2)

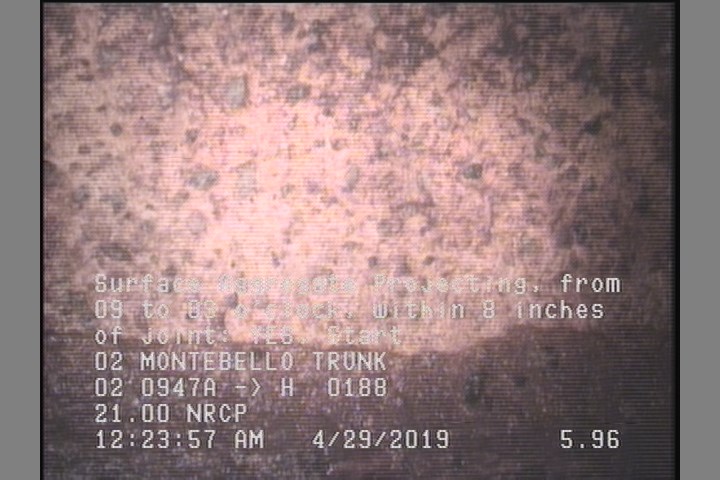

6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

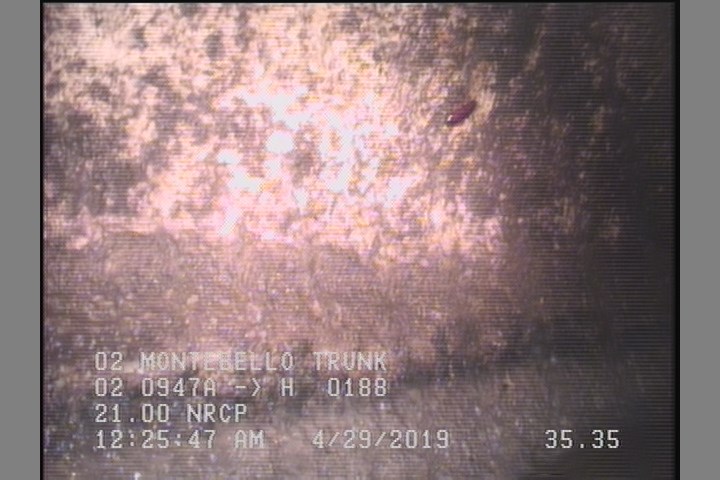

35.4 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWM | — |
| 0.5 | MGO | CONNECTION IN MH 9 OCLOCK |
| 44.2 | TF | — |
| 6 | SAP | — |
| 35.4 | SAP | — |
| 123.3 | AMH | H 0188 |
| 0 | MWL | — |
| 0 | AMH | 02 0947A |
| 35.4 | SAM | — |
| 123.3 | SAM | — |
Properties (4)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-04-30T00:01:12-07:00
- is_lateral_inspection
- false
