Wastewater/Activity/PacpInspection/1.0Mar 6, 2019, 05:26 AM
F 0237_F 0236 _03052019_234307.mp4
- Date
- 03/05/2019
- W/O
- 750833
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00039
- PipeID
- P10190
- Time
- 9:26 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6461
- Sewer Name
- F JOINT OUTFALL F - UNIT 4
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750833_TV02359_FEB2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- F 0237
- Downstream MH
- F 0236
- Dir. of Survey
- Downstream
- Length Surveyed
- 485.4 ft.
- Total Length
- 485.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

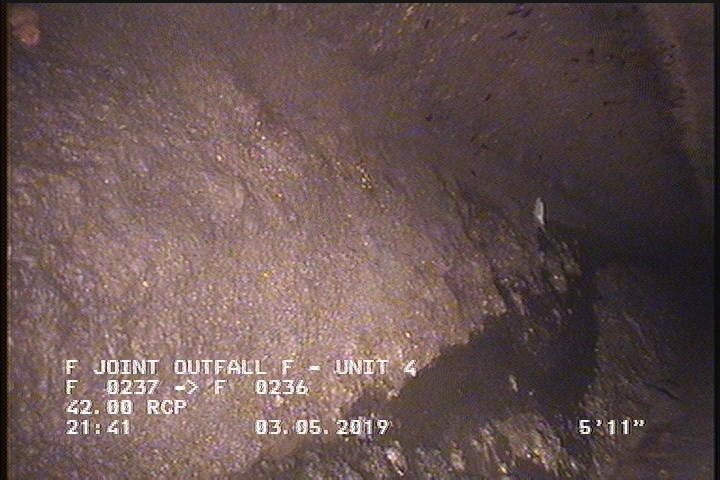

6 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - UNKNOWN DEBRIS
31.3 ft. - General Observation - MAG COAT THROUGHOUT

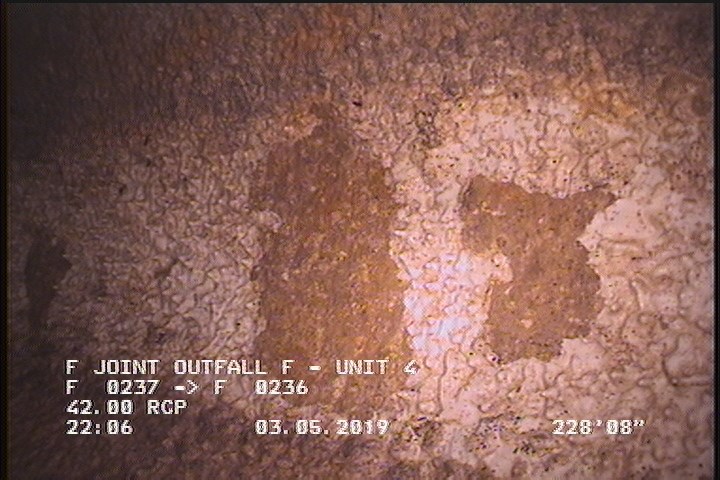

228.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 485.4 | MSA | DUE TO DEBRIS IN LINE |
| 0 | MWL | — |
| 485.4 | SAP | — |
| 0 | MWM | — |
| 6 | DSZ | UNKNOWN DEBRIS |
| 31.3 | MGO | MAG COAT THROUGHOUT |
| 228.5 | SAP | — |
| 485.4 | DSZ | UNKNOWN |
| 0 | AMH | F 0237 |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-05T21:26:46-08:00
- is_lateral_inspection
- false
