Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 09:07 AM
14 0540_14 0539 _03182019_022814.mp4
- Date
- 03/18/2019
- W/O
- 750675
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00588
- PipeID
- P18631
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6428
- Sewer Name
- 14 35TH STREET WEST TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750675_TV14074_FEB2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 0540
- Downstream MH
- 14 0539
- Dir. of Survey
- Downstream
- Length Surveyed
- 500.1 ft.
- Total Length
- 500.1 ft.
- Structural Index
- 3
- Structural Quick
- 3S00
- Structural Rating
- 297
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 301
Observation photos (2)

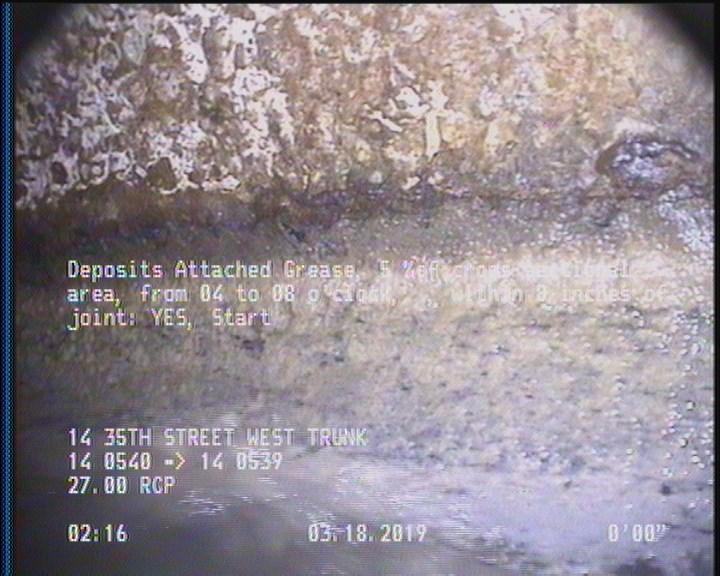

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

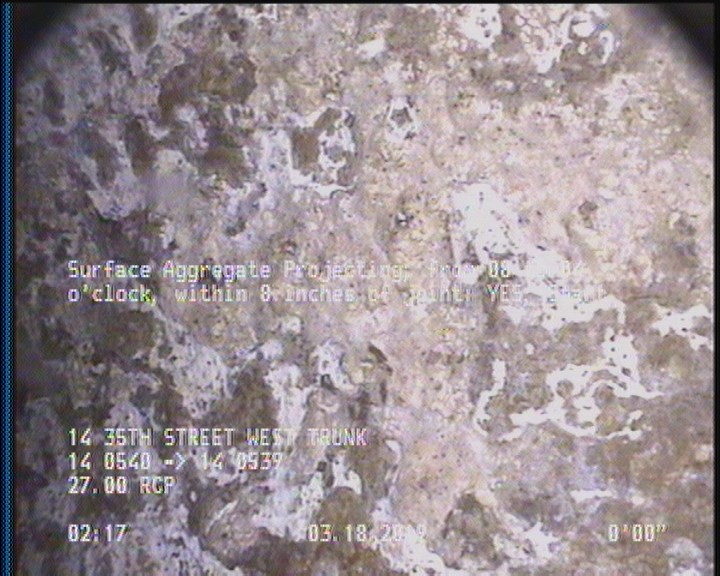

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 499.1 | DAGS | — |
| 500.1 | AMH | 14 0539 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 14 0540 |
| 2 | SAP | — |
| 499.1 | SAP | — |
Properties (5)
- additional_info
- SC365946
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-18T02:07:02-07:00
- is_lateral_inspection
- false
