Wastewater/Activity/PacpInspection/1.0Feb 25, 2019, 11:57 AM
21 0905_21 0904 _022519_035749.mp4
- Date
- 02/25/2019
- W/O
- 750673
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00775
- PipeID
- P15980
- Time
- 3:57 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5814
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750673_TV21014_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 21 0905
- Downstream MH
- 21 0904
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.8 ft.
- Total Length
- 366.8 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (5)

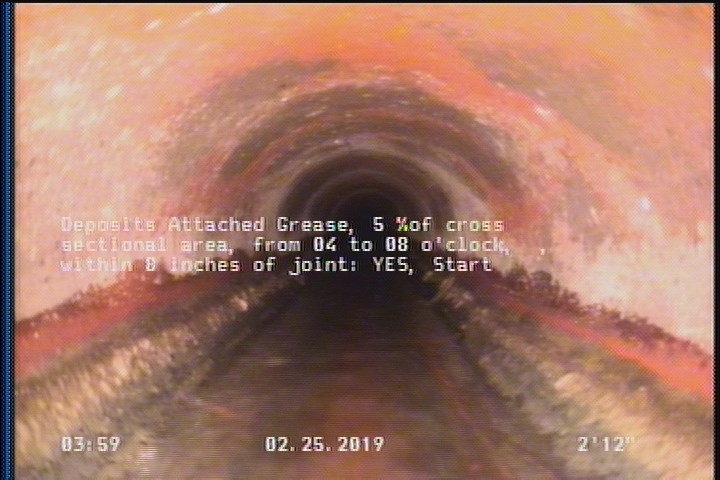

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

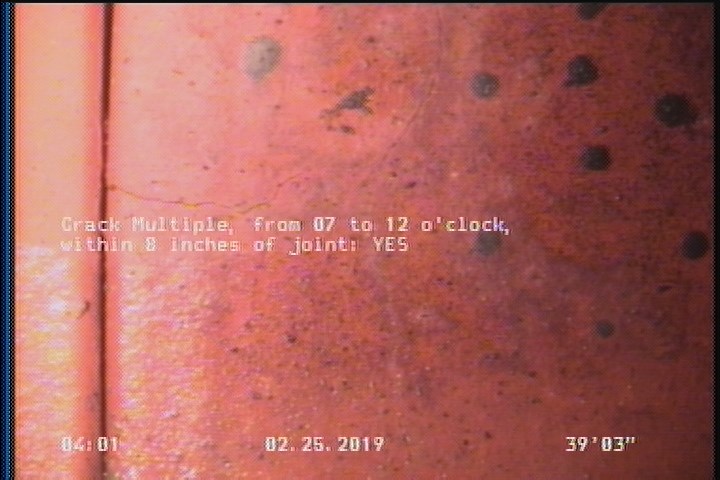

39.2 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

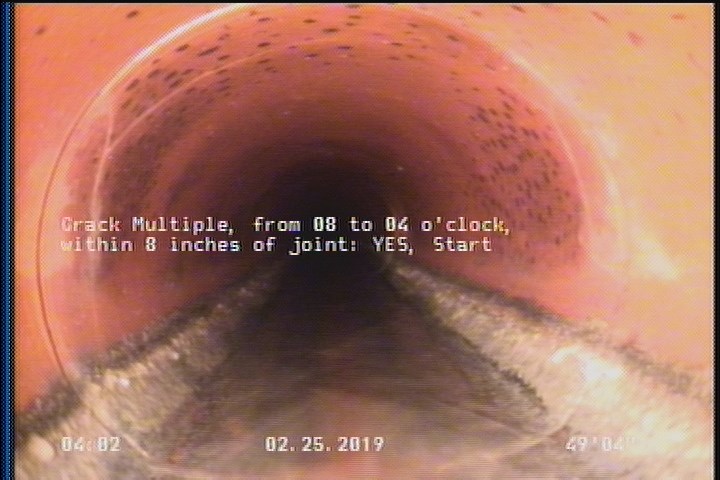

49.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

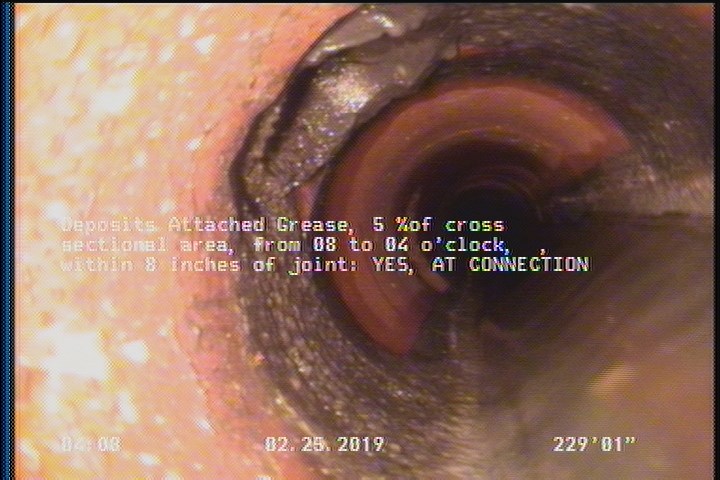

229.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES - AT CONNECTION

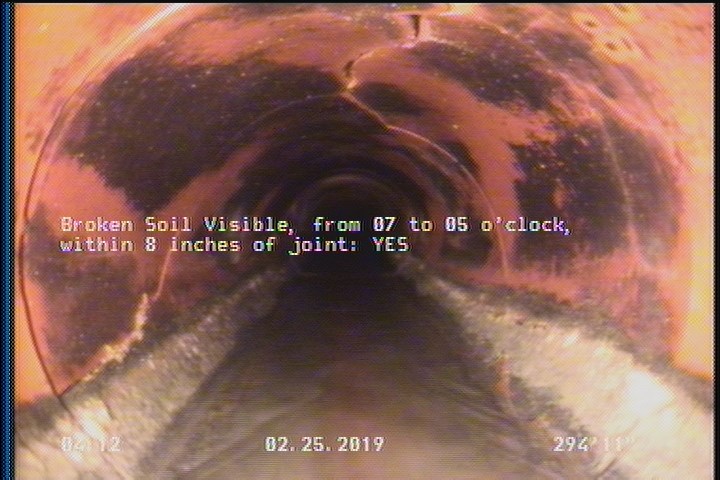

294.9 ft. - Broken Soil Visible, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (27)
| Distance | Code | Observation |
|---|---|---|
| 28 | TFC | — |
| 283.1 | TFC | — |
| 229.1 | DAGS | AT CONNECTION |
| 364 | DAGS | — |
| 294.9 | BSV | — |
| 366.8 | AMH | 21 0904 |
| 366.8 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 0 | AMH | 21 0905 |
| 81 | TFC | — |
| 83.5 | TFC | — |
| 185 | TFC | — |
| 280.4 | TFC | — |
| 182.4 | TFC | — |
| 3 | DAGS | — |
| 49.4 | CM | — |
| 364 | CM | — |
| 333.2 | TFC | — |
| 135.9 | TFC | — |
| 231.6 | TFC | — |
| 39.2 | CM | — |
| 335.7 | TFC | — |
| 0 | MWM | — |
| 229.1 | TB | — |
| 233.9 | TF | — |
| 133.4 | TFC | — |
| 30.8 | TFC | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC366387
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-25T03:57:23-08:00
- is_lateral_inspection
- false
