Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 20, 2019, 07:40 AM

  • 01 0798A_01 0798_02202019_001146.mp4

Date
02/19/2019
W/O
750661
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00197
PipeID
P01501
Time
11:40 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6279
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
RFIR_WO_750661_TV01264_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0798A
Downstream MH
01 0798
Dir. of Survey
Downstream
Length Surveyed
289.8 ft.
Total Length
289.8 ft.
Structural Index
4
Structural Quick
5244
Structural Rating
29
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
34
Pipe schematic from manhole 01 0798A to 01 0798
MH: 01 0798AMH: 01 0798downstream0 ft. MWM - Water Mark, 75 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 0798A0 ft. MWL - Water Level, 55 %of cross sectional area2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start13.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"25.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish25.8 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start36.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"39.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"60.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"67.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start67.1 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish77.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"85 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES85 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish86.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"87.4 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start110.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"125.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"137.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"161.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"169.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"191 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"218.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"225.1 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish225.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES234.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start242.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"263.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"287.3 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish289.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0798289.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK289.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

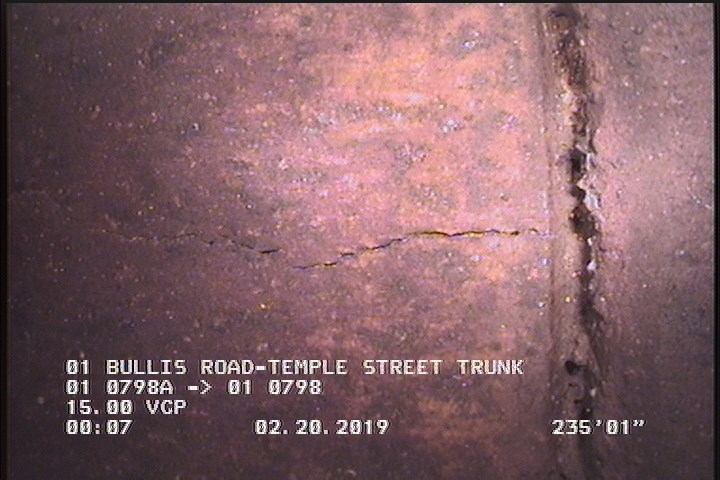

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

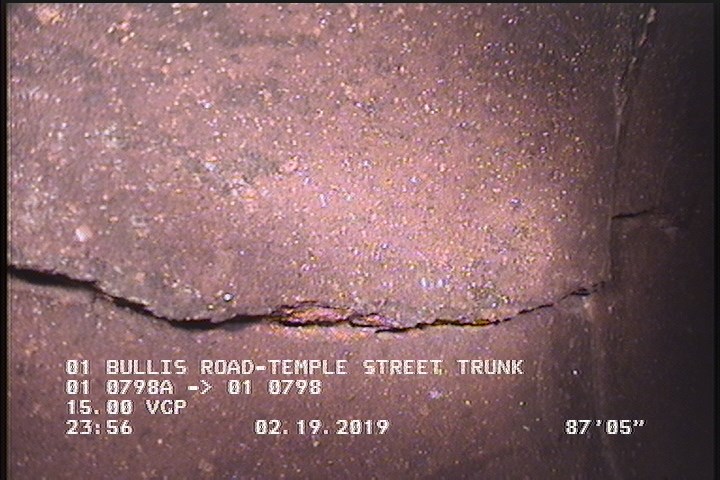

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    25.8 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    87.4 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    225.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    234.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01501Work order 750661

Observations (34)

DistanceCodeObservation
242.7TFC—
13.1TFC—
25.8FM—
161.2TFC—
287.3FM—
169.6TFC—
60.2TFC—
2FM—
87.4B—
0MWM—
0MGOCONNECTION AT MH 9 O'CLOCK
25.8B—
289.8AMH01 0798
77.9TFC—
67.1FM—
137.1TFC—
86.3TFC—
85B—
39.2TFC—
0AMH01 0798A
125.2TFC—
225.1B—
234.9FM—
218.3TFC—
110.7TFC—
191TFC—
67.1B—
36.5TFC—
225.1FM—
263.9TFC—
85FM—
289.8MGOCONNECTION AT MH 3 O'CLOCK
289.8MGOCONNECTION AT MH 9 O'CLOCK
0MWL—

Properties (4)

custom_field_two
1
customer
LACSD
datetime
2019-02-19T23:40:59-08:00
is_lateral_inspection
false
