Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 20, 2019, 10:31 AM

  • 01 0795_01 0794_02202019_025032.mp4

Date
02/20/2019
W/O
750661
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00197
PipeID
P01497
Time
2:31 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6279
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
RFIR_WO_750661_TV01264_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0795
Downstream MH
01 0794
Dir. of Survey
Downstream
Length Surveyed
214.6 ft.
Total Length
214.6 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 01 0795 to 01 0794
MH: 01 0795MH: 01 0794downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07950 ft. MWM - Water Mark, 60 %of cross sectional area1.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start1.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start45.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"78.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8" - DEBRIS93.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"118.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"142.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"175.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"184.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"202.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish202.5 ft. B - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES, Start211.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish211.8 ft. B - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish214.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK214.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0794

Observation photos (2)

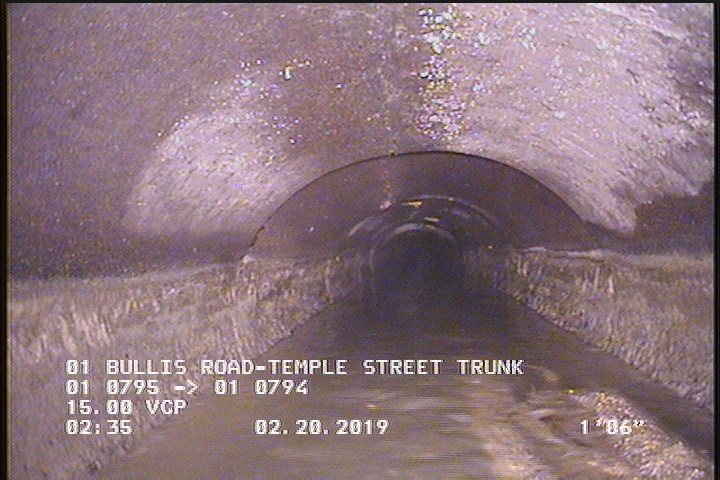

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    1.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    1.5 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P01497Work order 750661

Observations (18)

DistanceCodeObservation
1.5DAGS—
202.5FM—
0MWL—
175.6TFC—
214.6MGOCONNECTION AT MH 3 O'CLOCK
0AMH01 0795
211.8DAGS—
118.2TFC—
214.6AMH01 0794
78.8TFDEBRIS
45.5TFC—
142.4TFC—
93.9TFC—
202.5B—
184.9TFC—
1.5FM—
211.8B—
0MWM—

Properties (4)

custom_field_two
1
customer
LACSD
datetime
2019-02-20T02:31:58-08:00
is_lateral_inspection
false
