Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 20, 2019, 08:13 AM

  • 01 0798_01 1372_02202019_003939.mp4

Date
02/20/2019
W/O
750661
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00197
PipeID
P21616
Time
12:13 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6279
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
RFIR_WO_750661_TV01264_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0798
Downstream MH
01 1372
Dir. of Survey
Downstream
Length Surveyed
342.3 ft.
Total Length
342.3 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 01 0798 to 01 1372
MH: 01 0798MH: 01 1372downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07980 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK3.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start29.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"71.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"74.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"122.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"125.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"174.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"176.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"224.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"227.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"278.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 8"278.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"278.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish278.8 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start322 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"324.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"341.9 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish342.3 ft. AMH - Downstream Manhole, Survey Ends - 01 1372

Observation photos (2)

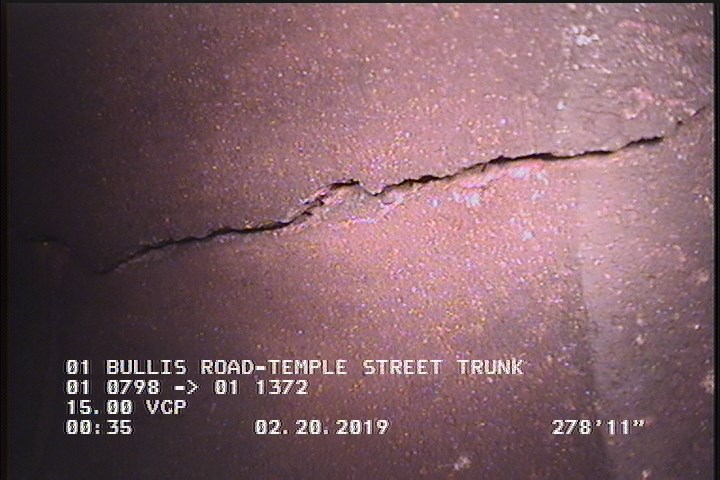

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    278.8 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P21616Work order 750661

Observations (23)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK
322TF—
74.3TFC—
342.3AMH01 1372
227.6TFC—
278.2TFC—
122.8TF—
324.1TFC—
0MWM—
278.8TFC—
125.4TFC—
71.4TFC—
341.9B—
224.6TF—
0AMH01 0798
0MWL—
29.3TFC—
176.4TFC—
174.6TF—
278.8FM—
3.1FM—
278.8B—
0MGOCONNECTION AT MH 3 O'CLOCK

Properties (4)

custom_field_two
1
customer
LACSD
datetime
2019-02-20T00:13:41-08:00
is_lateral_inspection
false
