Wastewater/Activity/PacpInspection/1.0Feb 6, 2019, 09:15 AM
B 1509_B 1508 _02062019_012912.mp4
- Date
- 02/06/2019
- W/O
- 739989
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P25624
- Time
- 1:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6382
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_739989_TV16038_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1509
- Downstream MH
- B 1508
- Dir. of Survey
- Downstream
- Length Surveyed
- 423.6 ft.
- Total Length
- 423.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

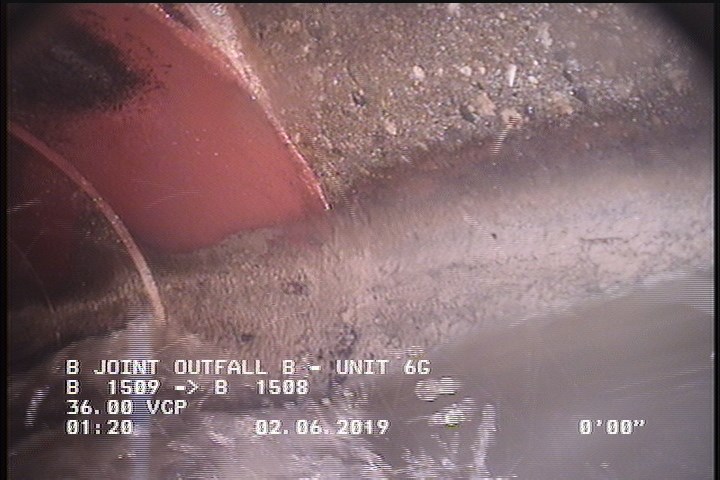

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

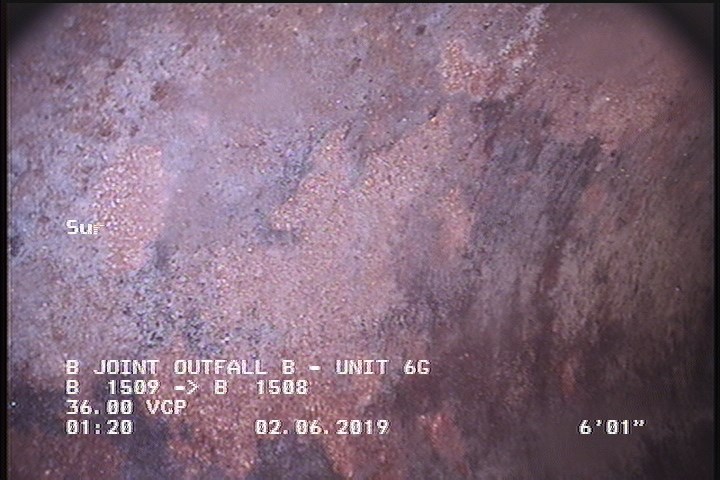

6.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

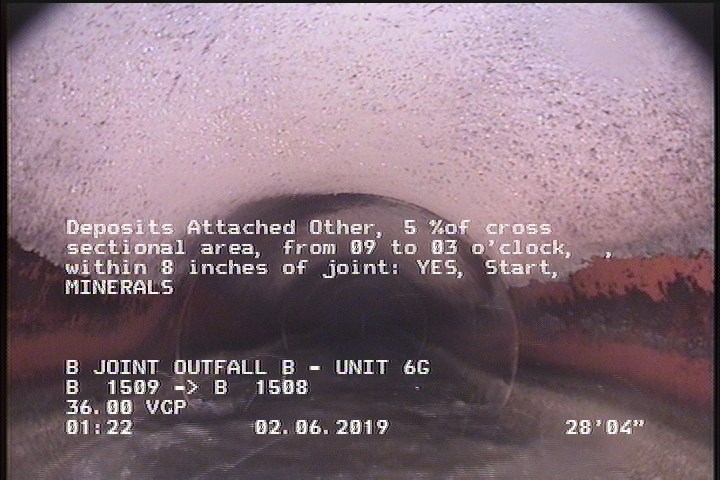

20 ft. - Repair Patch, from 11 to 01 o'clock, within 8 inches of joint: YES

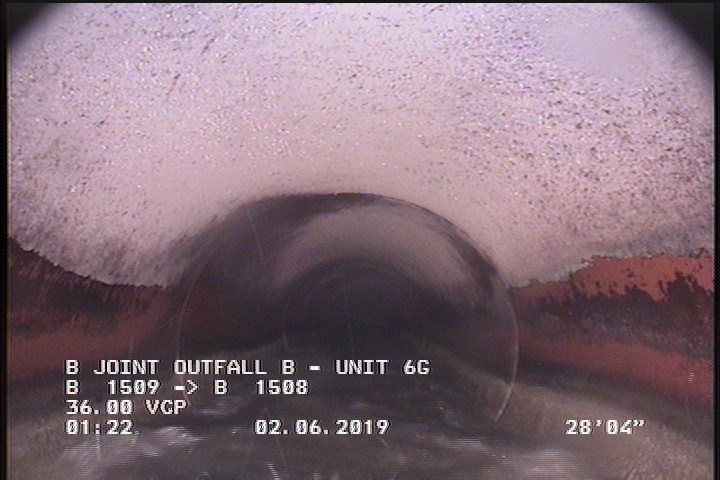

28.2 ft. - Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - MINERALS
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 28.2 | DAZ | MINERALS |
| 423.6 | AMH | B 1508 |
| 0 | MWL | — |
| 423.6 | DAZ | — |
| 423.6 | DAGS | — |
| 2 | DAGS | — |
| 6.1 | SSS | — |
| 0 | AMH | B 1509 |
| 423.6 | SSS | — |
| 20 | RPP | — |
Properties (6)
- additional_info
- SC365694
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-06T01:15:45-08:00
- is_lateral_inspection
- false
- year_laid
- 38891
