Wastewater/Activity/PacpInspection/1.0Feb 6, 2019, 11:04 AM
B 1499_B 1520 _02062019_031022.mp4
- Date
- 02/06/2019
- W/O
- 739989
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P25635
- Time
- 3:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6382
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_739989_TV16038_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- B 1520
- Downstream MH
- B 1499
- Dir. of Survey
- Upstream
- Length Surveyed
- 44.8 ft.
- Total Length
- 44.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

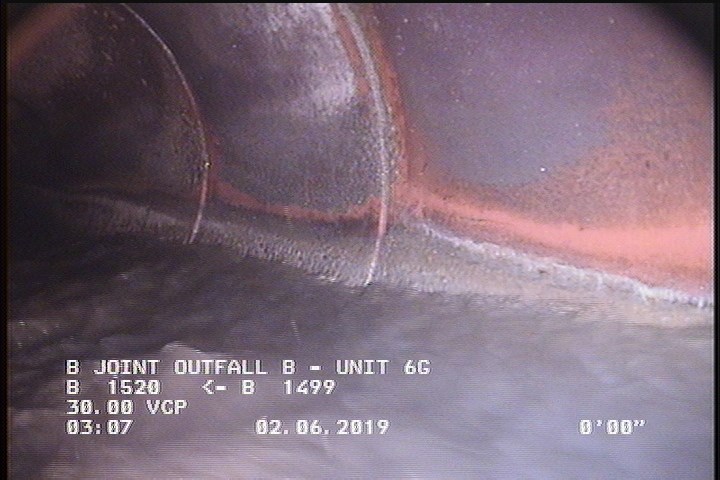

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 44.8 | AMH | B 1499 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | B 1520 |
| 42.4 | DAGS | — |
Properties (5)
- additional_info
- SC365694
- customer
- LACSD
- datetime
- 2019-02-06T03:04:16-08:00
- is_lateral_inspection
- false
- year_laid
- 38886
