Wastewater/Activity/PacpInspection/1.0Feb 7, 2019, 10:12 AM
B 1505_B 1504 _02072019_022024.mp4
- Date
- 02/07/2019
- W/O
- 739989
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P25620
- Time
- 2:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6385
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_739989_TV16038_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1505
- Downstream MH
- B 1504
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.5 ft.
- Total Length
- 88.5 ft.
- Structural Index
- 2
- Structural Quick
- 312A
- Structural Rating
- 23
- O&M Index
- 2
- O&M Quick
- 412B
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 61
Observation photos (3)

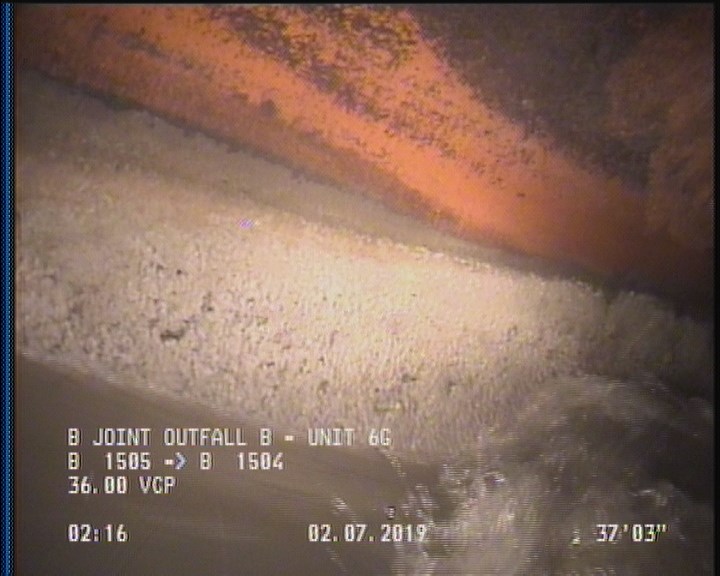

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

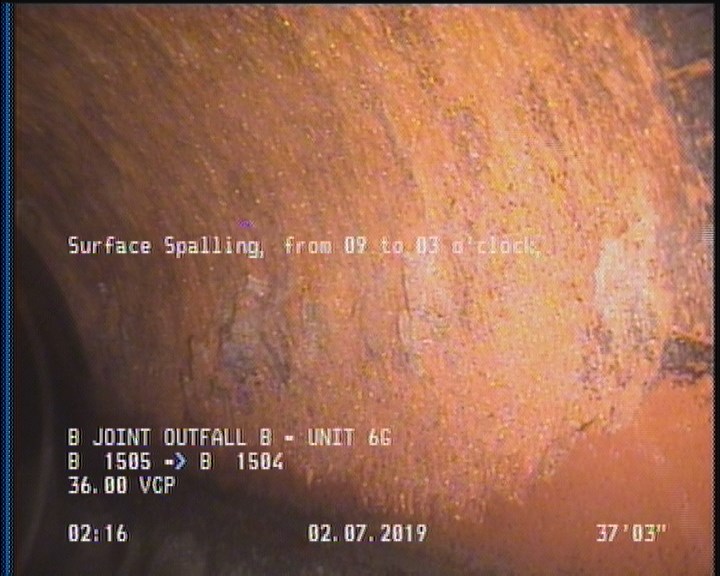

37.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

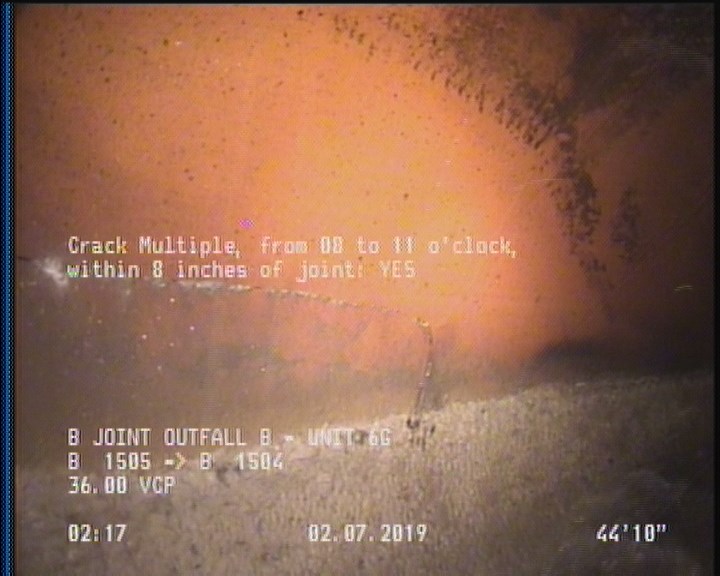

44.8 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 58.3 | TFA | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | B 1505 |
| 88.5 | DAGS | — |
| 44.8 | CM | — |
| 0 | MWL | — |
| 83.3 | TFA | — |
| 88.5 | AMH | B 1504 |
| 37.3 | SSS | — |
| 88.5 | SSS | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC365697
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-07T02:12:41-08:00
- is_lateral_inspection
- false
- year_laid
- 38884
