Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 08:12 AM
B 0788_15 0610 _09272018_011252.mp4
- Date
- 09/27/2018
- W/O
- 729689
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00601
- PipeID
- P12545
- Time
- 1:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6047
- Sewer Name
- 15 DOUBLE AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729689_TV15205_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 0610
- Downstream MH
- B 0788
- Dir. of Survey
- Upstream
- Length Surveyed
- 21.4 ft.
- Total Length
- 21.4 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

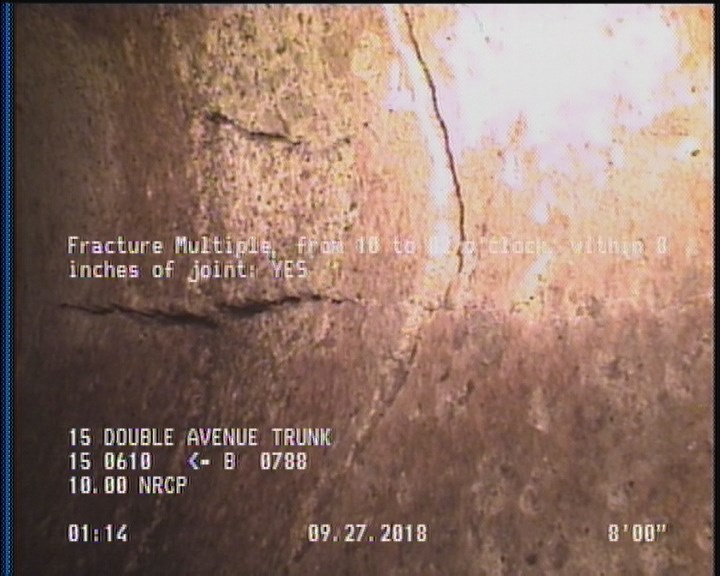

8 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

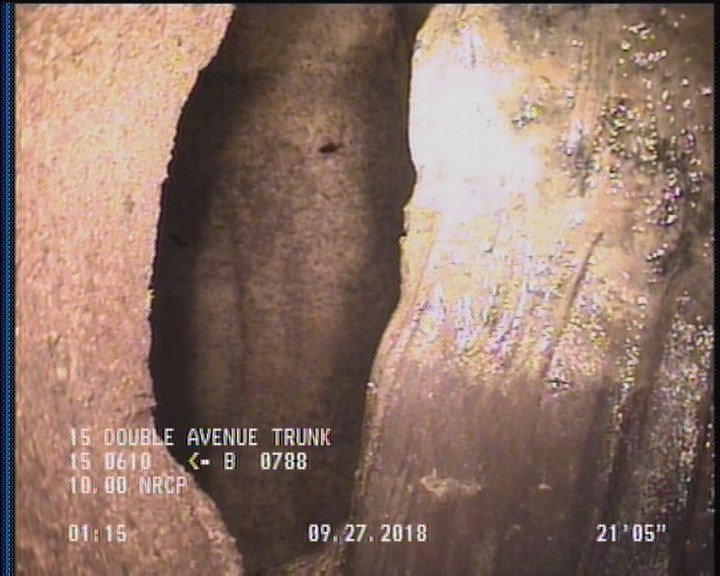

21.4 ft. - Upstream Manhole, Survey Ends - B 0788, STOP LOG
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 21.4 | AMH | B 0788, STOP LOG |
| 8 | FM | — |
| 0 | AMH | 15 0610 |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC365110
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-27T01:12:43-07:00
- is_lateral_inspection
- false
