Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 05:47 AM
15 0613_15 0612A _09262018_224722.mp4
- Date
- 09/26/2018
- W/O
- 729689
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00601
- PipeID
- P12549
- Time
- 10:47 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6047
- Sewer Name
- 15 DOUBLE AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729689_TV15205_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 0613
- Downstream MH
- 15 0612A
- Dir. of Survey
- Downstream
- Length Surveyed
- 137.3 ft.
- Total Length
- 137.3 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 81
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 54
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 135
Observation photos (4)

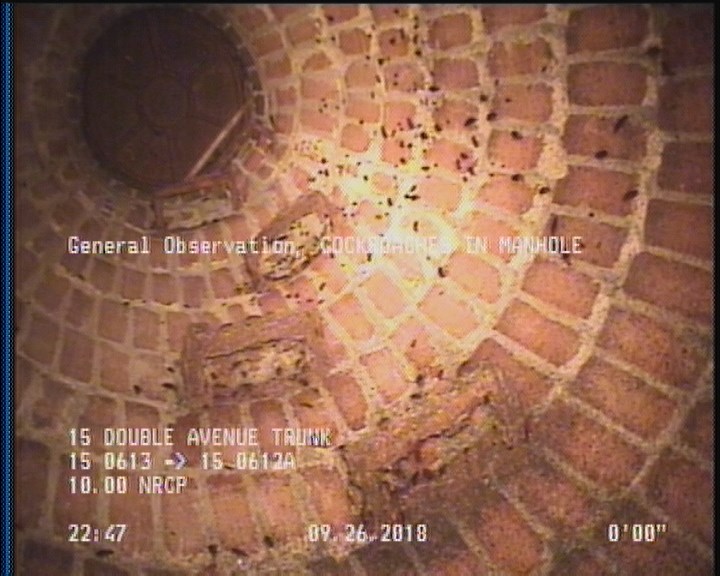

0 ft. - General Observation - COCKROACHES IN MANHOLE

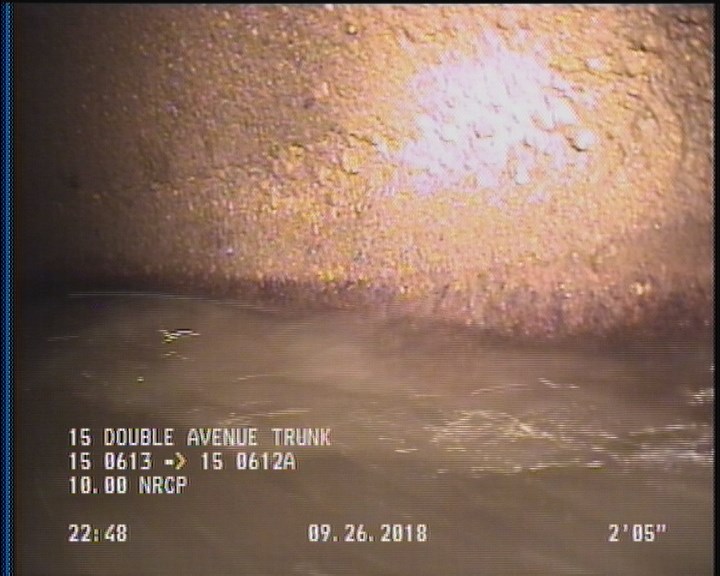

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

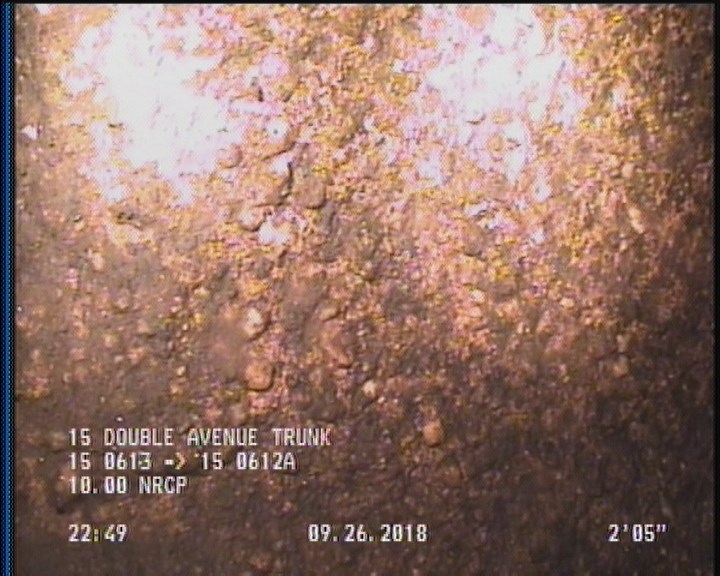

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

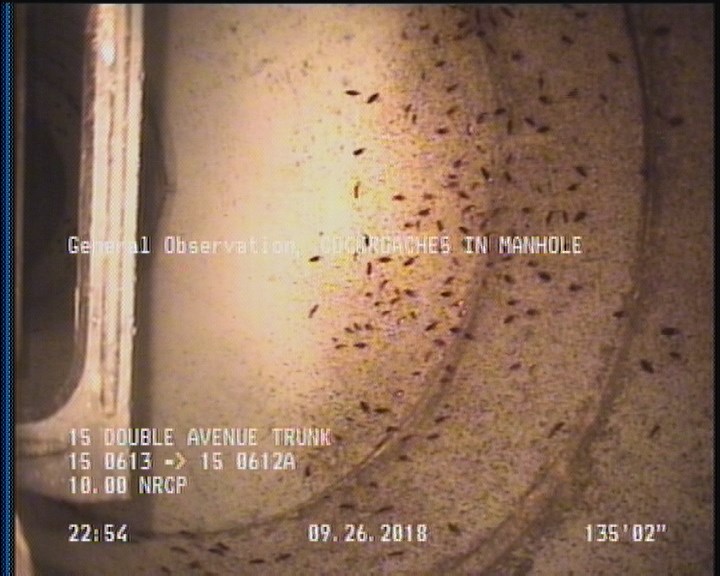

135.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 36.3 | TFA | — |
| 0 | AMH | 15 0613 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 137.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 137.3 | AMH | 15 0612A |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 96.2 | TF | — |
| 135.2 | MGO | COCKROACHES IN MANHOLE |
| 135.2 | DAGS | — |
| 135.2 | SAP | — |
| 30.3 | TF | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 126.1 | TFA | — |
Properties (5)
- additional_info
- SC365110
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-26T22:47:03-07:00
- is_lateral_inspection
- false
